Product Name:

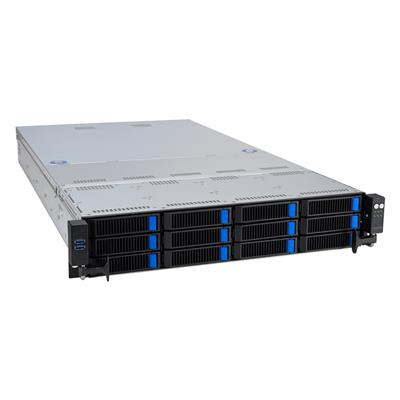

ASUS RS521A-E12-RS12U Rackmount 2U Server (Socket SP5/DDR5)

Web Address:

www.asus.com

Model Number:

RS501A-E12-RS12U/1G/1.6kW/12NVMe/OCP/GPU

EAN:

4711387768723

UPC:

197105768727

Package Type:

Retail

Warranty:

3 Years

CPU Interface:

1 x Socket SP5

CPU Support:

https://servers.asus.com/products/servers/rack-servers/rs521a-e12-rs12U#Resources

Memory Total Slots:

24 x DIMM slots

Memory Capacity:

3,072GB

Memory Type:

• with AMD EPYC 9005 series processors
• DDR5 6400/5600 RDIMM/3DS RDIMM
• with AMD EPYC™ 9004 series processors
• DDR5 4800 RDIMM/ 3DS RDIMM

Slot Type:

• Up to 5 PCIe Gen5 slots + 1 OCP3.0
• 2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
• 1 x PCIe Gen5 x8, LP
• 1 x OCP 3.0 Slot (PCIe Gen5 x16)

Drive Bays Internal 2.5":

2

M.2 Connector:

2

On-Board LAN:

• 1 x Dual Port Intel I350-AM2 GbE LAN Controller
• 1 x Management Port

Front I/O:

2 x USB 3.2 Gen1 ports

Back Panel I/O Ports:

• 2 x USB 3.2 Gen1 ports
• 1 x VGA port
• 1 x Management port
• 2 x 1GbE LAN ports

Management Solution:

• ASUS Control Center
• ASUS ASMB11-iKVM (on-board)

Environment:

• Operating temperature: 10°C - 35°C
• Non operating temperature: -40°C - 70°C
• Non operating humidity: 20% – 90% (Non condensing)

PSU:

• 1+1 Redundant 2000W/1600W 80 PLUS Titanium
• Power Supply

Form Factor:

2U

Product Width:

449mm

Product Length:

840mm

Product Height:

88.1mm

EMI/Safety:

CB, CE, RCM, FCC(Class A), ENERGY STAR

Net Weight:

17.95Kg

Package Width:

58.5cm

Package Length:

110.3cm

Package Height:

26.3cm

Gross Weight:

25.14Kg

Special Features:

• Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 400 watts.
• Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two drives in the real panel, and five PCIe 5.0 slots for higher bandwidth and system upgrades.
• Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity.
• Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centres for versatile workloads.
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Centre IT management software and hardware-level Root-of-Trust solution.
• Read for AI and HPC workloads: Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx.

Package Contents:

2U Rackmount System

Keywords:

• 2U
• Rackmount
• System
