Product Name:

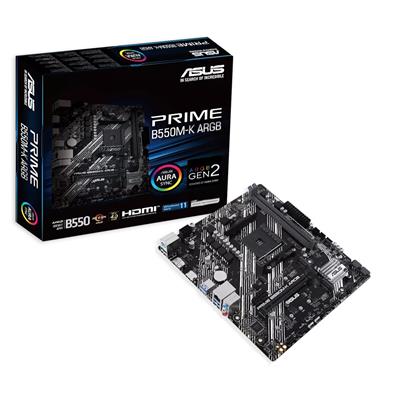

ASUS PRIME B550M-K ARGB (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B550M-K ARGB

EAN:

4711387316030

UPC:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b550m-k-argb/helpdesk_cpu?model2Name=PRIME-B550M-K-ARGB

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 5100 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4/SATA
• 1 x PCIe Gen 3.0 x4/SATA

LAN Speed:

1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable Gen 2 headers

Form Factor:

Micro ATX

Product Width:

221mm

Product Length:

244mm

Package Width:

26cm

Package Length:

27cm

Package Height:

5cm

Gross Weight:

5.88Kg

Special Features:

• AMD AM4 Socket: Ready for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors.
• Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 ports and front USB 3.2 Gen 1 Type-C.
• Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• 1 x User guide

Keywords:

• Motherboard
• AM4
• B550
• DDR4
• Micro-ATX
• M-ATX
