Product Name:

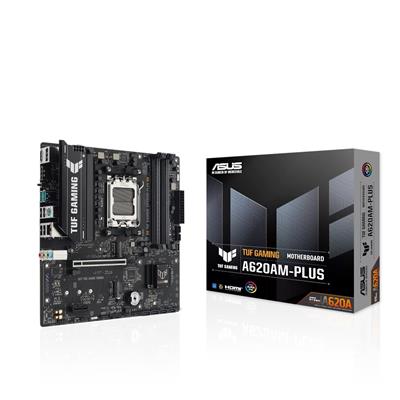

ASUS TUF GAMING A620AM-PLUS (Socket AM5/A620A/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING A620AM-PLUS

EAN:

4711636231824

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD A620A

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620am-plus/helpdesk_qvl_cpu?model2Name=TUF-GAMING-A620AM-PLUS

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 10Gbps Port(s) Type-A:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Net Weight:

0.82Kg

Gross Weight:

1.30Kg

Special Features:

ASUS TUF GAMING A620AM-PLUS takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O shield
• 2 x Screw packages for M.2 SSD
• 1 x TUF GAMING sticker
• 1 x Quick start guide
