Product Name:

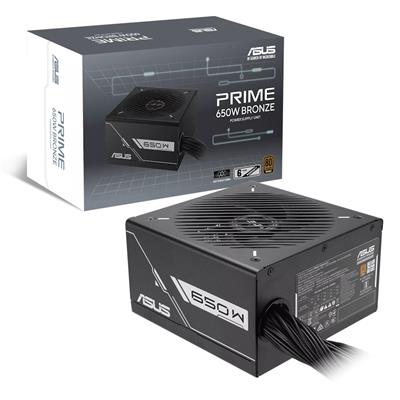

ASUS 650W ATX Standard Power Supply - PRIME-650B-BLACK - (Active PFC/80 PLUS Bronze)

Web Address:

www.asus.com

Model Number:

PRIME-650B-BLACK

UPC:

471138763528

Package Type:

Retail

Warranty:

6 Years

Type:

ATX 12V

Maximum Power:

650W

20+4-pin Main:

1

4+4-pin ATX/EPS:

1

6+2-pin PCI-E:

2

SATA Connector(s):

5

Peripheral Connector(s):

3

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

120,000 hours

Colour:

Black

Cable Type:

Standard

Cable Length:

• 1 x CPU cable (800mm)
• 1 x PCI-E 1-to-2 (600mm)
• 1 x SATA 1-to-2 cable (400+120mm)
• 1 x SATA 1-to-3 cable (400+120+120mm)
• 1 x Peripheral 1-to-3 cable (400+120+120mm)

Cooling System:

1 x 135mm (Dual Ball Bearings)

Product Width:

150mm

Product Length:

150mm

Product Height:

86mm

Package Width:

19cm

Package Length:

34cm

Package Height:

11.50cm

Net Weight:

2.20Kg

Gross Weight:

3.00Kg

Special Features:

• Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
• An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
• Etched cables can be bent easily during installation.
• 6-year warranty included.

Package Contents:

• Power Supply
• UK Power Cord
• Manual

Keywords:

• PSU
• Power Supply
• OPP
• OVP
• UV
• SCP
• OCP
• OTP
