Product Name:

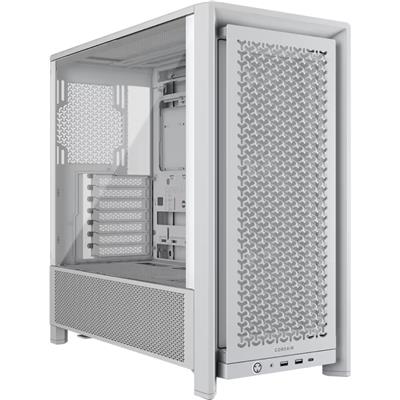

Corsair Frame 4000D RS Mid Tower Case - White

Web Address:

www.corsair.com

Model Number:

CC-9011313-WW

UPC:

840440496588

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

White

Material Chassis:

Steel

Material Front Panel:

Plastic

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

2

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

7 Horizontal or 3 Vertical

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

2

Drive Bays Internal 2.5":

4

PSU Support:

ATX

Radiator Support:

• Top: 360mm, 280mm, 240mm
• Front: 360mm, 280mm, 240mm
• Bottom: None
• Side: 360mm, 280mm, 240mm
• Rear: 140mm, 120mm

Fan Support:

• Top: 3 x 120mm, 2 x 140mm
• Front: 3 x 120mm, 2 x 140mm, 2 x 200mm
• Bottom: 2 x 120mm
• Side: 3 x 120mm; 2 x 140mm
• Rear: 1 x 120mm, 1 x 140mm

Clearances:

• Maximum CPU Cooler Height: 170mm
• Maximum PSU Length: 220mm
• Maximum GPU Length: 430mm

Product Width:

239mm

Product Length:

490mm

Product Height:

486mm

Package Width:

55.8cm

Package Length:

56.8cm

Package Height:

31.6cm

Net Weight:

8.20Kg

Gross Weight:

10.38Kg

Special Features:

• Fully modular design for next-level customization.
• InfiniRail Fan Mounting System for easier building.
• Includes three RS120 performance fans.
• Dual 360mm radiator support.
• GPU anti-sag stabilization arm.
• Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH.

Package Contents:

• Case
• Accessory Box

Keywords:

• Case
• Mini-ITX
• Micro-ATX
• ATX
• E-ATX
