Product Name:

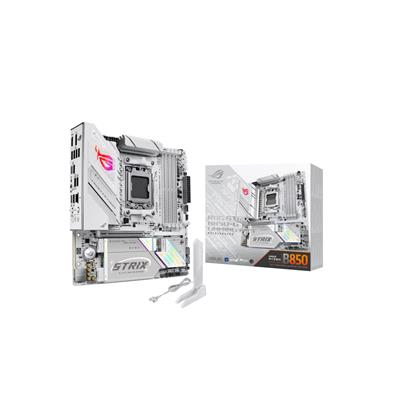

ASUS ROG STRIX B850-G GAMING WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B850-G GAMING WIFI

EAN:

4711636092265

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b850-g-gaming-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

2

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-C:

1

Back USB 20Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable RGB Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x Thermal Sensor header

Internal Button(s):

1 x Start

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.50cm

Package Length:

28.50cm

Package Height:

7.25cm

Net Weight:

1.38Kg

Gross Weight:

2.05Kg

Special Features:

Unleash next-gen performance with the ROG Strix B850-G Gaming WiFi. Built with a sleek white PCB and featuring support for AMD Ryzen 9000 Series processors and cutting-edge DDR5 memory, this motherboard is equipped for top-tier gaming. PCIe 5.0, USB 20Gbps Type-C and WiFi 7 ensure unmatched speed and performance.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 3 x M.2 rubbers
• 1 x Screw package for M.2 SSD
• 1 x Quick start guide
