Product Name:

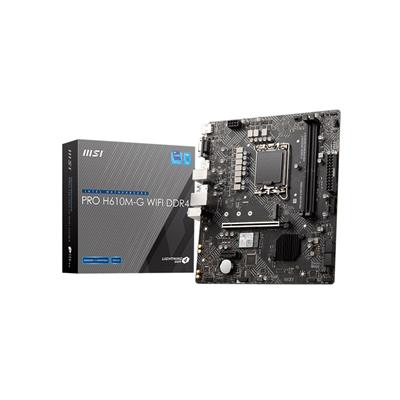

MSI PRO H610M-G WIFI DDR4 (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO H610M-G WIFI DDR4

EAN:

4711377020626

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel H610

CPU Interface:

Socket 1700

CPU Support:

https://www.msi.com/Motherboard/PRO-H610M-G-WIFI-DDR4/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 3200 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

LAN Speed:

1 x Intel I219V 1Gbps LAN controller

Wireless NIC:

Wi-Fi 5

Wireless Technology:

Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps

Bluetooth:

v4.2

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 4 x EZ Debug LED

Form Factor:

Micro ATX

Product Width:

211mm

Product Length:

244mm

Package Width:

25.7cm

Package Length:

26cm

Package Height:

5.5cm

Gross Weight:

0.77Kg

Special Features:

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket.
• Supports DDR4 Memory, up to 3200(MAX) MHz.
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Lightning-Fast Experience: PCIe 4.0.
• Audio Boost: Reward your ears with studio grade sound quality.
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
• Wireless and Bluetooth: Wi-Fi 5, Bluetooth 4.2.

Package Contents:

• Motherboard
• Quick Installation Guide
• M.2 Clip
• Wi-Fi Antenna
• 2 x SATA Cable
• IO Shield
• Wi-Fi Bracket
• Drive DVD
