Product Name:

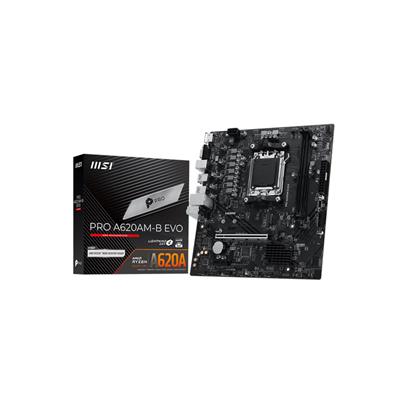

MSI PRO A620AM-B EVO (Socket AM5/A620A/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO A620AM-B EVO

EAN:

4711377397216

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD A620A

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/PRO-A620AM-B-EVO/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6800 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

2

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek RTL8125 2.5G LAN

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Mouse Port:

1

Back PS/2 Keyboard Port:

1

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

218mm

Package Width:

25.7cm

Package Length:

26cm

Package Height:

5.5cm

Gross Weight:

0.91Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC).
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Lightning-Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2.
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Package Contents:

• Motherboard
• QUick Installation Guide
• EZ M.2 Clip II Remover
• EZ M.2 Clip II
• SATA Cable
• IO Shield
