Product Name:

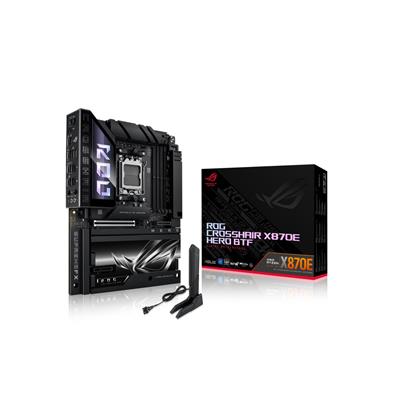

ASUS ROG CROSSHAIR X870E HERO BTF (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR X870E HERO BTF

EAN:

4711636227094

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero-btf/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200+ (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

6

Back USB 10Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

3 x Addressable Gen2 headers

Internal Button(s):

• 1 x FlexKey
• 1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

33cm

Package Length:

37cm

Package Height:

10cm

Net Weight:

1.60Kg

Gross Weight:

4.26Kg

Special Features:

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

Package Contents:

• Motherboard
• 1 x ARGB RGB extension cable
• 4 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 2 x M.2 Q-Latch package
• 3 x M.2 Q-Slide package
• 5 x M.2 rubber package
• 1 x ROG stickers
• 1 x ROG thank you card
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide
