Product Name:

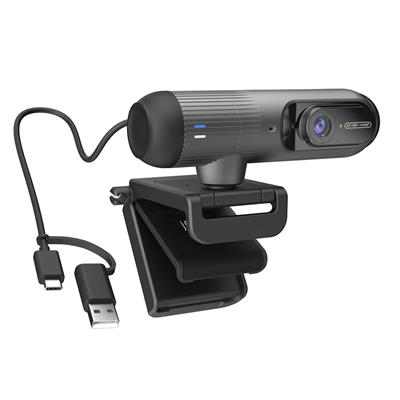

J5Create 2K AI-Powered Webcam with Auto-Focus

Web Address:

en.j5create.com

Model Number:

JVU302-N

EAN:

4712795089554

Package Type:

Retail

Warranty:

1 Year

Hardware:

• Host connector: USB-C / USB 2.0 Type-A
• Image sensor: 1/2.7" 5MP CMOS sensor
• Led indicators
• - Auto Focus (AF): Green Light
• - Manual Focus (MF): Orange Light
• - Mute: Red Light
• - Mic Activated: White Light
• - Wireless Connection: Blue Light
• Operating voltage and current: 5V/270-480 mA ±5 mA
• Privacy cover
• Protocol: USB 2.0/UVC 1.1/UAC 1.0
• Shutter style: Electronic rolling shutter

Performance:

• Display fov: 87.6° (Horizontal: 79.3°)
• Effective pixels: 2560(H) x 1440(V)
• Frame rate: 1440p/1080p/720p/640p/480p/360p @ 60 fps / 30 fps
• Max display refresh rate: 60Hz
• Microphone: Built-in high-fidelity microphone
• Output format: MJPEG, YUV
• Supported resolution output:
• MJPEG / H.264:
• 2560 x 1440
• 1920 x 1080
• 1440 x 2544 (Vertical view 9:16)
• 1280 x 720
• 960 x 540
• 848 x 480
• 640 x 360
• YUY2:
• 640 x 360
• 424 x 240
• 848 x 480

Lens Kit:

• ENS: PC+30% GF(Housing) / Glass + COC
• VCM (Voice Coil Motor): Holder (LCP) / Stainless Steel piece/ Magnetic Coil

Colour:

Black

Enclosure Type:

ABS (Housing) / PC (Panel)

Temperature:

0°C to 40°C

Product Width:

35.5mm

Product Height:

41.5mm

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

7cm

Net Weight:

0.26Kg

Gross Weight:

0.35Kg

Special Features:

• Auto (AF) / Manual (MF) focus mode switching.
• High resolution and frame rate: 2560 x 1440 @ 60 fps and 1920 x 1080 @ 60 fps.
• AI modes: Framing (2 or more people) and Vertical Shooting Mode.
• Supports digital zoom in/out (3X max).
• 2-in-1 design, functions as a document camera and webcam.
• - Can be adjusted to mount onto a monitor or standing on a desk.
• - Camera housing can be pulled out horizontally and rotated 90° to face downwards.
• - Long-press the focus switch knob 3 seconds to rotate the image 180°.
• - Support 9:16 vertical view shooting on mobile phone.
• USB plug-and-play, no additional setup needed.
• Supports H.264,MJPEG and YUY2.
• Compliant with standard UVC 1.1/1.5 and UAC 1.0 protocol, driver-free.
• Supports Windows /macOS /Chrome OS systems.
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc.

Package Contents:

• 1 x JVU302 2K AI-Powered Webcam with Auto-Focus
• 1 x USB-C to USB-C cable with USB Type-A converter (Black) 1.8m
• 1x Quick Installation Guide
