Product Name:

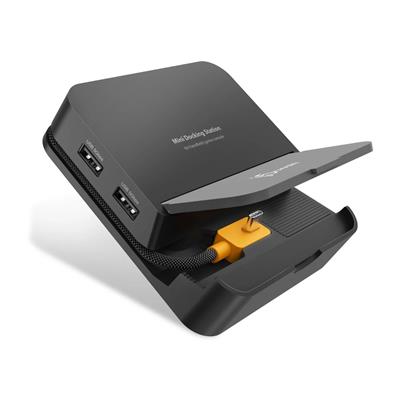

J5Create Omni Side Dock for Nintendo Switch 2 and Steam Deck

Web Address:

en.j5create.com

Model Number:

JCD624-N

EAN:

4712795089813

Package Type:

Retail

Warranty:

2 Years

Hardware:

• Host connector: 1 x USB-C Male (PD 3.0 100W)
• Port:
• 1 x HDMI 2.0: 4K60
• 1 x USB-C Power In: Supports PD 3.0 up to 100W
• 2 x USB Type-A: USB 3.2 Gen1, 5Gbps
• 1 x USB-C: USB 3.2 Gen1, 5Gbps
• 1x RJ45: 1000 Mbps
• Power source: Bus-powered or self-powered
• Video output: 1x HDMI Female

Performance:

• Audio channel: 2.1 via HDMI
• Compatible networks:10 / 100 / 1000 Base-T, auto-negotiating
• Displays supported: 1
• Max data transfer rate: 5 Gbps
• Max display refresh rate: 120 Hz (Depends on your device)
• Max display resolution:
• 3840 x 2160 @ 60 Hz
• 2560 x 1440 @ 120 Hz
• 1920 x 1080 @ 120 Hz

Power:

• Input current: 5A
• Input voltage: 20V
• Output current: 4.75A
• Output voltage: 20V
• Power consumption: = 400 mA
• Power delivery: Up to 100W via USB-C

Cable Length:

200mm

Temperature:

-1 to 41°C

Product Width:

100mm

Product Length:

106mm

Product Height:

28.5mm

Product Weight:

230g

Package Width:

14.2cm

Package Length:

14.6cm

Package Height:

3.6cm

Net Weight:

0.24Kg

Gross Weight:

0.33Kg

Special Features:

• For handheld game consoles such as the Steam Deck, ROG Ally, and Nintendo Switch. Nintendo Switch 2 and iPad mini with USB-C version.
• Featuring an HDMI 2.0 port for 4K60 output, USB-C PD 3.0 for up to 100W.
• Two High-speed USB 5Gbps ports for connecting versatile devices.
• The cable's detachable design allows you to adjust its angle, making it compatible with various game consoles.
• It's the perfect companion for on-the-go gaming.

Package Contents:

• 1 x Omni Side Dock for Nintendo Switch 2 and Steam Deck
• 1 x Quick Installation Guide
