Product Name:

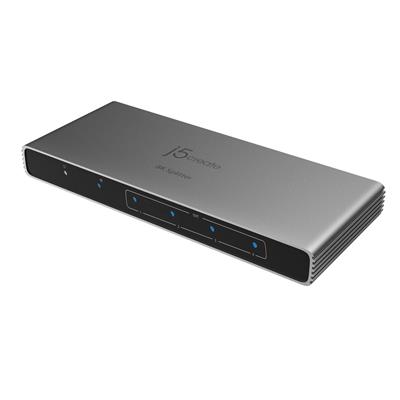

J5Create 8K HDMI 2.1 4-Way Splitter

Web Address:

en.j5create.com

Model Number:

JDSH814-N

EAN:

4712795088793

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Space Grey

Hardware:

• Audio supported
• Host connector: HDMI Female
• Led indicators: White light indicates power status/Blue light indicates video signal
• Ports: 1 x 8K HDMI In / 4 x 8K HDMI Out
• Power source: Self-powered
• Video output: HDMI Female

Performance:

• Audio channel: DTS-HD/Dolby True HD /LPCM7.1/DTS/Dolby-AC3/DSD
• Displays supported: 4
• Hdr supported: HDR 10 / HDR 10+ / Dolby Vision / HLG
• Max display refresh rate:
• Maximum Display Refresh Rate (1 Input):
• 8K @ 60 Hz
• 4K @ 120 Hz
• 1440p @ 240 Hz
• 1080p @ 240 Hz
• Maximum Display Refresh Rate (4 Output):
• 8K @ 60 Hz
• 4K @ 120 Hz
• 1440p @ 240 Hz
• 1080p @ 240 Hz
• Max display resolution:
• 7680 × 4320

Power:

Power consumption: = 500 mA

Temperature:

0 to 40°C

Product Width:

168mm

Product Length:

68.4mm

Product Height:

18mm

Product Weight:

255.5g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.5cm

Net Weight:

0.26Kg

Gross Weight:

0.34Kg

Special Features:

• The HDMI splitter allows you to duplicate your HDMI image to up to 4 displays.
• Supports impressive resolutions up to 8K@60Hz, 4K@120Hz and is backward compatible with 1440p@240Hz, 1080p@240 Hz.
• Plug-and-play makes it effortless to toggle between input sources or displays without drivers.
• 2-channel audio support.
• Supports Variable Refresh Rate (VRR), FreeSync, G-Sync.
• Supports ALLM (Auto Low Latency Mode).
• Audio: DTS-HD/Dolby-True HD /LPCM7.1/DTS/Dolby-AC3/DSD.
• PS5/PS4, Xbox Series X/Xbox One, desktops, laptops, Blu-ray DVD player, Chromecast, and more.
• Compatible with TVs, monitors, projectors, and other displays.

Package Contents:

• 1 x 8K HDMI 2.1 4-Way Splitter
• 1 x DC to USB Type-A cable included (150cm)
• 1 x Quick Installation Guide

Keywords:

• Splitter
• HDMI
