Product Name:

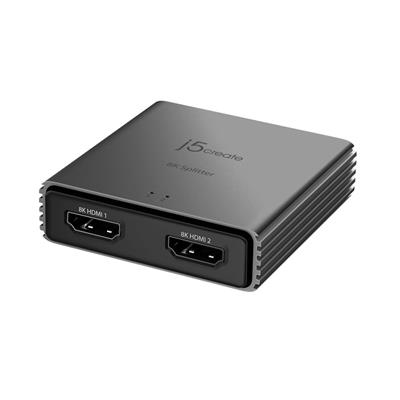

J5Create 8K HDMI 2.1 2-Way Splitter

Web Address:

en.j5create.com

Model Number:

JDSH812-N

EAN:

4712795088786

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Space Grey

Hardware:

• Audio supported: DTS-HD/Dolby True HD /LPCM7.1/DTS/Dolby-AC3/DSD
• Host connector: HDMI Female
• LED indicators: Red light shows video signal
• Ports:
• 1 x 8K HDMI In
• 2 x 8K HDMI Out
• Power source: Self-powered
• Video output: HDMI Female

Performance:

• Audio channel: 7.1 via HDMI
• Displays supported: 2
• Hdcp compliance: HDCP 2.2/2.3 and HDCP 1.4
• Hdr supported: HDR 10 / HDR 10+ / Dolby Vision / HLG
• Max display refresh rate:
• Maximum Display Refresh Rate (1 Input):
• 8K @ 60 Hz
• 4K @ 120 Hz
• 1440p @ 240 Hz
• 1080p @ 240 Hz
• Maximum Display Refresh Rate (2 Output):
• 8K @ 60 Hz
• 4K @ 120 Hz
• 1440p @ 240 Hz
• 1080p @ 240 Hz

Power:

Power consumption: = 500 mA

Temperature:

0 to 40°C

Humidity:

< 85% non-condensing

Product Width:

57.4mm

Product Length:

56.5mm

Product Height:

16mm

Product Weight:

45g

Package Width:

9.5cm

Package Length:

14.5cm

Package Height:

2.5cm

Net Weight:

0.05Kg

Gross Weight:

0.11Kg

Special Features:

• The HDMI splitter allows you to duplicate your HDMI image to up to 2 displays.
• Supports impressive resolutions up to 8K@60Hz, 4K@120Hz and is backward compatible with 1440p@240Hz, 1080p @ 240 Hz.
• Plug-and-play makes it effortless to toggle between input sources or displays without drivers.
• 2-channel audio support.
• Supports Variable Refresh Rate (VRR), FreeSync, G-Sync.
• Supports ALLM (Auto Low Latency Mode).
• Audio: DTS-HD/Dolby-True HD /LPCM7.1/DTS/Dolby-AC3/DSD.
• PS5/PS4, Xbox Series X/Xbox One, desktops, laptops, Blu-ray DVD player, Chromecast, and more.
• Compatible with TVs, monitors, projectors, and other displays.

Package Contents:

• 1 x 8K HDMI 2.1 2-Way Splitter
• 1 x USB-C to USB Type-A cable included (100cm)
• 1 x Quick Installation Guide
