Product Name:

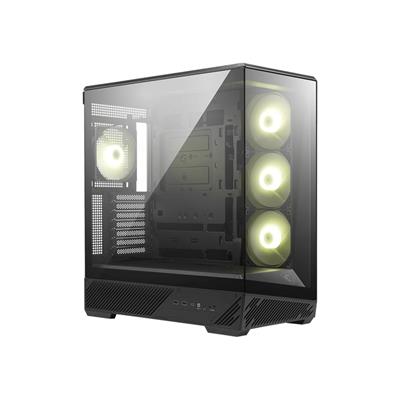

MSI MAG Pano 130R PZ Black Mid Tower Case (ATX/M-ATX/Mini-ITX)

Web Address:

uk.msi.com

Model Number:

MAG PANO 130R PZ

EAN:

4711377365758

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Front USB 5Gbps Port(s) Type-A:

2

Front USB 20Gbps Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

7

Motherboard Support:

Mini ITX / Micro ATX / ATX

Drive Bay(s):

• Up to 3 x 2.5” SSD
• Up to 2 x 3.5” HDD
• (Maximum of 3 drives can be mounted at once, depending on configuration)

PSU Support:

ATX

Pre-installed Fan(s) Rear:

1 x 120 mm ARGB Fan

Pre-installed Fan(s) Side:

3 x 120 mm ARGB Fan (Reverse Blade Fan)

Radiator Support:

• Top: 120 / 140 / 240 / 280 / 360 mm
• Front: N/A
• Rear: 120 mm
• Side: 120 / 240 / 360 mm
• Bottom: N/A

Fan Support:

• Top: 3 x 120 mm / 2 x 140 mm
• Front: N/A
• Rear: 1 x 120 mm
• Side: 3 x 120 mm
• Bottom: 3 x 120 mm (Above the power shroud)

Clearances:

• PSU: 180mm
• GPU: 400mm
• Cooler: 165mm

Product Width:

232mm

Product Length:

460mm

Product Height:

490mm

Package Width:

43.40cm

Package Length:

56.40cm

Package Height:

26.20cm

Net Weight:

5.64Kg

Gross Weight:

6.68Kg

Special Features:

• Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
• Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
• Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
• Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
• Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.

Package Contents:

Case

Keywords:

• Case
• ATX
• Micro-ATX
• Mini-ITX
