Product Name:

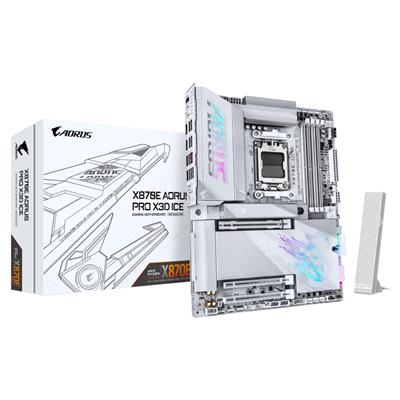

Aorus X870E AORUS PRO X3D ICE (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

X870E A PRO X ICE

EAN:

4719331876487

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-X3D-ICE/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 9000 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 5.0 x4

LAN Speed:

Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Qualcomm Wi-Fi 7 QCNCM865

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220 CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

5

Back USB 3.2 Port(s) Type-C Gen 2:

2

Back USB4 Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x Antenna connectors (2T2R)

Back Button(s):

• 1 x Reset
• 1 x Power
• 1 x Clear CMOS
• 1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2x2:

1

HDMI Port(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 1 x Noise detection header
• 2 x Temperature sensor headers

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

31.40cm

Package Length:

40cm

Package Height:

11.60cm

Net Weight:

3.63Kg

Gross Weight:

4.30Kg

Special Features:

• X3D Turbo Mode 2.0: Incredible X3D performance unleashed by AI.
• DDR5 OC up to 9000MT/s
• DriverBIOS: Wi-Fi Driver Pre-install, Power-On and EZ to Launch the Network.
• AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.
• Digital twin 18+2+2 phases VRM solution.
• Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support.
• M.2 EZ-Flex: high-efficiency heat dissipation and flexible patented baseplate for M.2 SSD.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• M.2 EZ-Latch Click and Plus: Quick Release and Screwless Design on M.2 slots and heatsinks.
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage: 4 and M.2 slots, including PCIe 5.0 x4.
• PCB Thermal Plate: 14% thermal improvement and reinforced motherboard stability.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard L and M.2 Thermal Guard Ext.
• Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
• Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 2 x SATA cables
• 1 x Noise detection cable
• 1 x G Connector
• DDR Wind Blade
• 2 x Packs of M.2 thick/thin rubber pads
