Product Name:

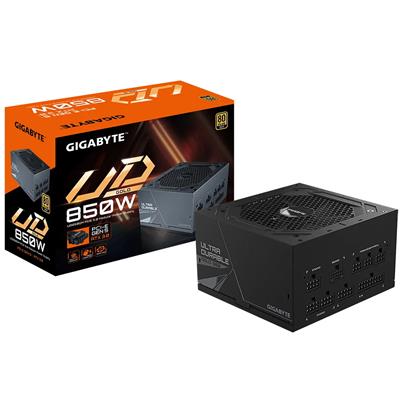

Gigabyte 850W ATX 12V v3.0 Fully Modular Power Supply - UD850GM PG5 V2 - 80 PLUS Gold

Web Address:

www.gigabyte.com

Model Number:

GP-UD850GM PG5 V2

EAN:

4719331556037

Package Type:

Retail

Warranty:

5 Years

Type:

ATX 12V v3.0

Maximum Power:

850W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

16-pin PCI-E:

1

SATA Connector(s):

8

Peripheral Connector(s):

4

Floppy Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Hold-up Time:

16ms

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Colour:

Black

Cable Type:

Fully Modular

Cable Length:

• ATX/MB 20+4 Pin x 1: 610mm x 1
• CPU/EPS 4+4 Pin x 2: 600mm+200mm x 1
• PCI-e 16 Pin x 1: 700mm x 1
• PCI-e 6+2 Pin x 4: 600mm+150mm x 2
• SATA x 8: 600mm+150mm+150mm+150mm x 2
• 4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm x 1

Cable Sleeving:

• Flat
• All black

Cooling System:

1 x 120mm Fan (HYB)

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Package Width:

20.6cm

Package Length:

25.4cm

Package Height:

11.7cm

Net Weight:

2.34Kg

Gross Weight:

2.50Kg

Special Features:

• Ultra Durable
• Main Japanese capacitors
• Enhanced thermal solution
• 120mm smart hydraulic bearing (HYB) fan
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Support PCIe Gen 5.0 graphics cards
• Support Intel ATX 3.0 standard
• 80 PLUS Gold certified
• Fully modular design
• Compact design

Package Contents:

• Power Supply
• UK Power Cord
• Mounting Screws
• Cable Set
