Product Name:

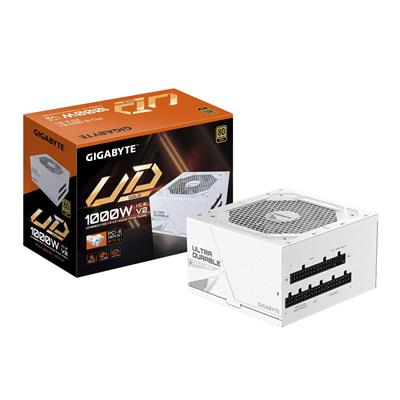

Gigabyte 1000W ATX 12V v3.1 Fully Modular Power Supply - UD1000GM PG5 V2 ICE - 80 PLUS Gold

Web Address:

www.gigabyte.com

Model Number:

GP-UD1000GM PG5 ICE

EAN:

4719331556631

Package Type:

Retail

Warranty:

5 Years

Type:

ATX 12V v3.1

Maximum Power:

1000W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

12+4-pin PCI-E:

1

SATA Connector(s):

8

Peripheral Connector(s):

4

Floppy Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Hold-up Time:

16ms

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

100,000 hours

Colour:

White

Cable Type:

Fully Modular

Cable Length:

• ATX/MB 20+4 Pin x 1: 610mm x 1
• CPU/EPS 4+4 Pin x 2 : 650mm+200mm x 1
• PCI-e 6+2 Pin x 4 : 600mm+150mm x 2
• PCI-e 12+4 Pin x 1:700mm x 1
• SATA x 8 : 600mm+150mm+150mm+150mm x 2
• 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm x 1

Cable Sleeving:

• Embossed
• All white

Cooling System:

1 x 120mm Fan (HYB)

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Package Width:

20.6cm

Package Length:

25.4cm

Package Height:

11.7cm

Net Weight:

2.48Kg

Gross Weight:

2.64Kg

Special Features:

• Ultra Durable
• 100% Japanese capacitors
• 120mm smart hydraulic bearing (HYB) fan
• Optimized thermal solution
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Intel ATX 3.1 and PCIe Gen 5.1 ready
• 80 PLUS Gold certified
• Fully modular design
• Powerful single +12V rail
• Compact size

Package Contents:

• Power Supply
• UK Power Cord
• Mounting Screws
• Cable Set

Keywords:

• PSU
• ATX 3.1
• PCIe Gen 5.1
• OVP
• OPP
• SCP
• UVP
• OCP
• OTP
