Product Name:

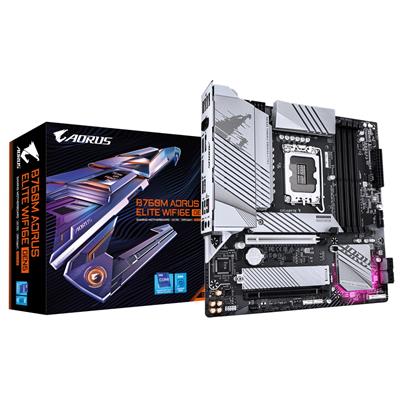

Aorus B760M A E WF6E GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B760M A E WF6E GEN5

EAN:

4719331872069

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-WIFI6E-GEN5/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 5600

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E AX210

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x Antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Thunderbolt AIC Connector(s):

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

• 1 x Q-Flash Plus
• 1 x Reset

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.80cm

Package Length:

27cm

Package Height:

6.80cm

Net Weight:

1.33Kg

Gross Weight:

1.70Kg

Special Features:

• PCIe Gen5 Performance: Perfect Sync to Win.
• Supports Intel Core 14th/ 13th /12th processors.
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.
• EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
• EZ-Latch Plus: M.2 Connectors with Quick Release and Screwless Design.
• PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
• Unparalleled Performance: Twin 12+1+1 Phases Hybrid VRM Solution.
• Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
• Extended Connectivity: Rear USB-C 20Gb/s, Front USB-C 10Gb/s, DP, HDMI.
• Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
• High-Res Audio: ALC1220 & High-End Audio Capacitors.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA cables
• M.2 screw(s)k
• Two packs of M.2 thick/thin rubber pad
