Product Name:

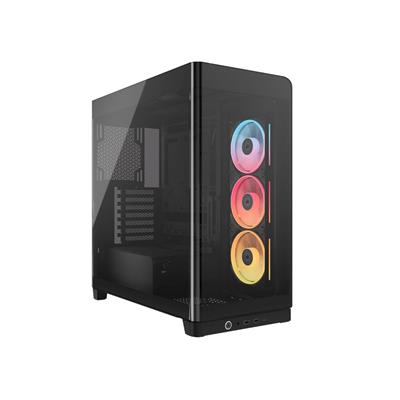

Corsair Frame 4500X LX-R RGB Mid Tower Case - Black

Web Address:

www.corsair.com

Model Number:

CC-9011316-WW

UPC:

840440402794

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

Steel

Material Front Panel:

Plastic

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

2

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

8 Horizontal or 3 Vertical

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

1

Drive Bays Internal 2.5":

2

PSU Support:

ATX

Pre-installed Fan(s) Side:

3 x 120mm (ARGB)

Radiator Support:

• Top: 360mm, 280mm, 240mm
• Side: 360mm, 280mm, 240mm
• Rear: 120mm, 140mm

Fan Support:

• Top: 3x 120mm, 2x 140mm
• Side: 3x 120mm, 2x 140mm
• PSU Shroud: 2x 120mm
• Bottom: 1x 120mm
• Rear: 1x 120mm, 1x 140mm

Clearances:

• PSU: 250mm
• CPU Cooler: 185mm
• GPU: 460mm

Dust Filter(s):

• Bottom
• Right Side

Product Width:

256mm

Product Length:

499mm

Product Height:

471mm

Package Width:

55.90cm

Package Length:

57.20cm

Package Height:

32.70cm

Net Weight:

9.10Kg

Gross Weight:

11.60Kg

Special Features:

• Wraparound front and side glass panel for an unobstructed view.
• Anti-shatter film on the glass panel for enhanced safety.
• Customization options with the FRAME Modular Case System.
• CORSAIR InfiniRail Fan Mounting System delivers unmatched flexibility.
• Dual 360mm radiator support with two mounting locations.
• Supports reverse-connection motherboards.
• Stay connected with an easily accessible USB front I/O panel.
• Included GPU Anti-Sag stabilization arm.
• Built from the ground up for easy iCUE LINK integration.
• Bundled reverse-rotor RGB fans for dazzling visuals.

Package Contents:

• FRAME 4500X Case
• 3 x RS120R ARGB Fans
• Case Accessory Box
