Product Name:

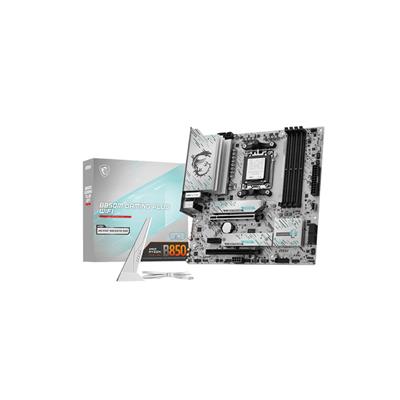

MSI B850M GAMING PLUS WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

B850M GAMING PLUS WIFI

EAN:

4711377347570

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/B850M-GAMING-PLUS-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8126 5G LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC897
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

COM Port Header(s):

1

TPM Header(s):

1

Internal Other Port(s):

• 4 x EZ Debug LED
• 1 x EZ Memory Detection LED
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

26.8cm

Package Length:

29.8cm

Package Height:

5.3cm

Net Weight:

1.07Kg

Gross Weight:

1.57Kg

Special Features:

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC).
• Ultra Performance: Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material.
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience.
• High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C.
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable
• SATA Cable
• 2 x EZ M.2 Clip II
• EZ M.2 Clip II Remover
