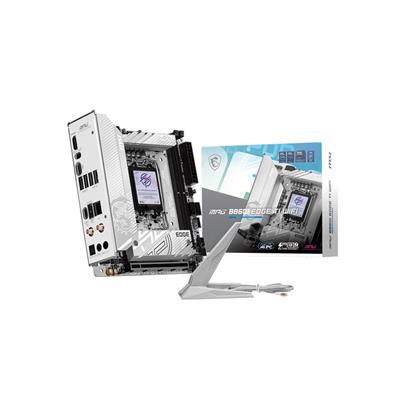

Product Name:

MSI MPG B860I EDGE TI WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Mini-ITX)

Web Address:

uk.msi.com

Model Number:

MPG B860I EDGE TI WIFI

EAN:

MSI 1851 MPG B860I EDGE TI WIFI M-ITX

UPC:

4711377350174

Warranty:

3 Years

Chipset:

Intel B860

CPU Interface:

Spcket 1851

CPU Support:

https://www.msi.com/Motherboard/MPG-B860I-EDGE-TI-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 5.0 x4

LAN Speed:

1 x Intel Killer E5000B 5G LAN

Wireless NIC:

Intel Killer BE1750x Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps.
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth:

V5.4

On-Board Audio:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back Other Port(s):

Wi-Fi / Bluetooth````````````````````````````````````````````````````````````````````````````````````````````````````````

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

1

PCIe Power Connector(s):

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

TPM Header(s):

1

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

22.3cm

Package Length:

27cm

Package Height:

5.7cm

Net Weight:

0.70Kg

Gross Weight:

1.20Kg

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, up to 8600+ MT/s (OC).
• Ultra Performance: Direct 8+1+1+1 Power Phases, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material.
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• EZ DIY: EZ Antenna, EZ Button and EZ Debug LED.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2.
• Ultra Connect: Thunderbolt 4 and Intel Killer 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• Cable Stickers
• EZ Wi-Fi Antenna
• SATA Cable
• M.2 Screw
• ARGB Extension Cable
• EZ Front Panel Cbale
