Product Name:

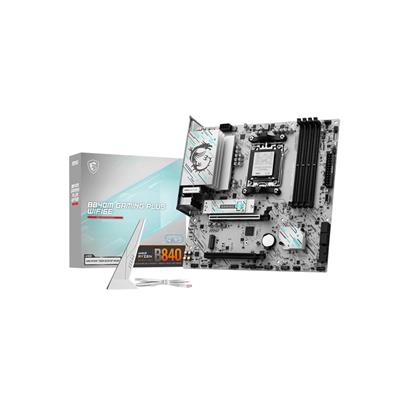

MSI B840M GAMING PLUS WIFI6E (Socket AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

B840M GAMING PLUS WIFI6E

EAN:

4711377361811

UPC:

824142431603

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/B840M-GAMING-PLUS-WIFI6E/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000MT/s (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8125D 2.5G LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

• 4 x EZ Debug LED
• 1 x EZ Memory Detection LED
• Wi-Fi / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

27cm

Package Length:

28.5cm

Package Height:

7cm

Gross Weight:

1.83Kg

Special Features:

• Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
• M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
• Extended Heatsink Design: MSI extended PWM heatsink, and enhanced circuit design ensures
• even high-end processors to run in full speed.
• Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
• 2.5G LAN: Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
• Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ Wi-Fi Antenna
• SATA Cable
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
• 1 to 2 EZ Conn-Cable
