Product Name:

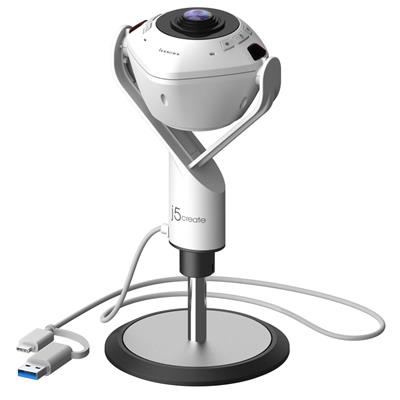

J5Create 360° All Around Webcam with Speakerphone

Web Address:

en.j5create.com

Model Number:

JVU368-N

EAN:

4712795086720

Package Type:

Retail

Warranty:

1 Year

Hardware:

• Host Connector: USB-C / USB 2.0 Type-A
• Image Sensor: 1/2.8" CMOS Sensor (Sony® IMX335 Sensor)
• LED Indicators: Blue: In use - Purple: Power on / Red: Mute
• Mounting Style: N/A
• Operating Voltage and Current: DC 5V/550 mA ±50 mA
• Privacy Cover: No
• Protocol: UVC 1.1 and UAC
• Shutter Style: N/A

Performance:

• Audio Microphone: Built-in omnidirectional microphone
• Display Fov:
• 1. Full Screen Mode: 2 - 180°(H), 52°(V)
• 2. Host Mode: 360°(H), 124°(H), 53°(V)
• 3. Dual Host Mode: 360°(H), 59°(H), 53°(V)
• 4. Three Speakers Mode: 59°(H), 53°(V), 71°(H), 51°(V)
• 5. 360° All Around View Mode: Zoom in/out 1.3X - 360°(H) ~ 26°(H) adjustable, 54°(V)
• 6. Single View Mode: Zoom in/out 3X - 180°(H) ~ 69°(H) adjustable, 89°(V) ~ 37°(V) adjustable
• Effective Pixels:
• 1. Full Screen Mode: 1920(H) x 540(V), 1920(H) x 540(V)
• 2. Host Mode: 1920(H) x 270(V), 1920(H) x 810(V)
• 3. Dual Host Mode: 1920(H) x 270(V), 960(H) x 810(V) ), 960(H) x 810(V)
• 4. Three Speakers Mode: 1152(H) x 980(V), 760(H) x 490(V) ,760(H) x 490(V)
• 5. 360° All Around View Mode: 1920(H) x 270(V) ~480(H) x 990(V) adjustable
• 6. Single View Mode: 1920(H) x 1080(V)
• Frame Rate: 30 FPS
• Max Display Resolution: 30Hz
• Megapixels: 5 million pixels (5MP) sensor
• Output Format: H.264, MJPEG, YUV
• Supported Resolution - Output
• MJPEG: 1920 x 1080 - 1280 x 720 - 960 x 540 - 640 x 480 - 360 - 320 x 240

Colour:

White, Black

Enclosure Type:

ABS

Cable Length:

200cm

Temperature:

• Operating:0°C to 40°C
• Storage: -20°C to 60°C

Humidity:

< 90% non-condensing

Product Width:

93.5mm

Product Length:

61.8mm

Product Height:

179mm

Package Width:

16.3cm

Package Length:

22.8cm

Package Height:

10.3cm

Gross Weight:

1.03Kg

Special Features:

• 360° video conferencing camera.
• Built-in omnidirectional microphone.
• Advanced Acoustic Echo Cancellation (AEC) technology: Uses advanced audio processing so others can hear your voice clearly.
• Automatic Gain Control (AGC) function: The volume will adjust to appropriate sound levels when multiple people are talking so everyone’s voice can be heard.
• Automatic Noise Reduction (ANR) Reduces unwanted background noise: Designed to block noises from the background that can interfere with meetings.
• Six display modes deliver exceptional viewing angles with flexibility and versatility.
• Adjustable fields of view.
• Full HD 1080p video playback at 30 Hz.
• USB UVC/UAC plug-and-play.
• Touch bar to specify participants’ location.
• Integrated reverse feature to flip mirrored image.
• Easily adjust audio settings and select display modes with built-in buttons.
• Supports IR function and IR controller.
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc.
• Includes remote control for 3x digital zoom in/out and pan functionality.
• High-definition Sony IMX335 sensor with up to 5MP pixels, 30% pixels enhanced compared with JVU360.
• Support HDR Function.

Package Contents:

• 1 x JVU368 360° All Around Webcam with Speakerphone
• 1 x Remote Control (JVURC1)
• 2 x AAA Batteries (Attached on the packaging)
• 1 x Quick Installation Guide (QIG)
