Product Name:

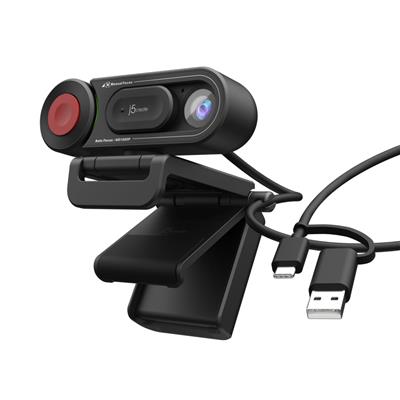

J5Create USB 4K Ultra HD Webcam

Web Address:

en.j5create.com

Model Number:

JVU250-N

EAN:

4712795086997

Package Type:

Retail

Warranty:

2 Years

Hardware:

• Host Connector: USB-C / USB 2.0 Type-A
• Image Sensor: 1/2.9” CMOS sensor
• LED Indicators: Auto Focus (AF): Green Light / Manual Focus (MF): Orange Light
• Mounting Style: Monitor clamp mount and tripod mount with drawer slide
• Operating Voltage and Current: 5V/280~320 mA ± 5 mA
• Privacy Cover: Yes
• Protocol: USB 2.0/UVC 1.1/UAC 1.0
• Shutter Style: Electronic rolling shutter with magnetic slide privacy cover

Performance:

• Display Fov: 83.3° (Horizontal: 75.4°)
• Effective Pixels: 1920(H) x 1080(V)
• Frame Rate: 1080p/ 720p/ 640p / 480p / 360p at 30FPS
• Max Display Refresh Rate: 30Hz
• Megapixels: 2 million pixels (2MP)
• Microphone: Built-in high-fidelity microphone
• Output Format: H.264, MJPEG, YUV
• Supported Resolution – Output:
• H.264: 1920 x 1080 / 1280 x 720 / 640 x 480 / 640 x 360 /
• MJPEG: 1920 x 1080 / 1280 x 720 / 640 x 480 / 640 x 360
• YUY2: 640 x 480

Lens Kit:

LENS: PC+30%GF(Housing) / Glass + COC - VCM (Voice Coil Motor): Holder (LCP) / Stainless Steel piece/ Magnetic Coil

Colour:

Black

Enclosure Type:

ABS (Housing) / PC (Panel)

Cable Length:

Built-in USB-C cable with USB Type-A converter (200cm)

Temperature:

• Operating: 0°C to 40°C
• Storage: -20°C to 60°C

Humidity:

< 90% non-condensing

Product Width:

68.5mm

Product Length:

100.7mm

Product Height:

5.8mm

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

7cm

Gross Weight:

0.35Kg

Special Features:

• Auto (AF) / Manual (MF) focus mode switching.
• Built-in high-fidelity microphone.
• High definition 1080p image sensor with wide angle lens.
• Full HD 1080p video playback at 30 Hz.
• Magnetic slide privacy cover.
• Design includes vents to effectively remove heat from the webcam.
• LED Indicator:
• Auto Focus (AF): Green Light
• Manual Focus (MF): Orange Light
• Two in one design, functions as a document camera and webcam
• Camera housing installs on device mounts with four linkages
• Camera housing can be pulled out horizontally and rotated 90° to face downwards
• Hold down the button to rotate the video 180°
• USB plug-and-play
• Supports H.264 and MJPEG image formats
• Compliant with standard UVC 1.1/1.5 and UAC 1.0 protocol, driver-free
• Supports Windows/macOS/Chrome OS systems
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc

Package Contents:

HD Webcam with Auto & Manual Focus Switch
