Product Name:

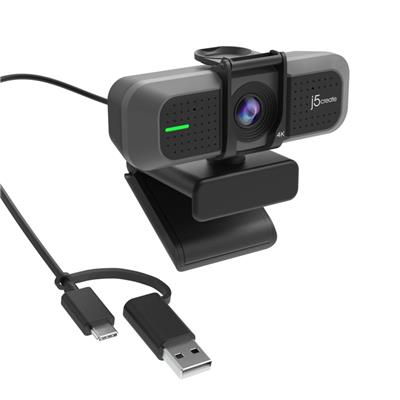

J5Create USB 4K Ultra HD Webcam

Web Address:

en.j5create.com

Model Number:

JVU430-N

EAN:

4712795086065

Package Type:

Retail

Warranty:

1 Year

Hardware:

• Host Connector: USB-C / USB 2.0 Type-A
• Image Sensor: 1/2.5" CMOS sensor
• LED Indicators: White/Green: Power on - Green/Red: In use
• Mounting Style: Monitor clamp mount and tripod mount
• Operating Voltage and Current: DC 5V/3500 mA ±15 mA
• Privacy Cover: Yes
• Protocol: UVC 1.1/1.5 and UAC 1.0
• Shutter Style: Electronic Rolling Shutter

Performance:

• Display Fov: 94° (Horizontal: 87°)
• Effective Pixels: 3840(H) × 2160(V)
• Frame Rate: 2160P/ 1080P/ 720P/ 540P/ 480P/ 360P at 30FPS - 1078P/ 718P/ 538P/ 478P/ 358P at 60 FPS
• Max Display Refresh Rate: 60 Hz
• Megapixels: 8
• Microphone: Dual High-fidelity Stereo Mic
• Output Format: MJPEG, YUV2
• Supported Resolution – Output:
• MJPEG: 3840 x 2160 - 2592 x 1944 - 2560 x 1440 - 2048 x 1536 - 1920 x 1080 - 1600 x 1200 - 1280 x 960 / 720 / 718 - 960 x 540 / 538 - 848 x 480 / 478 - 800 x 600 / 446 / 448 - 640 x 480 / 360 / 358 - 480 x 360 - 424 x 240 / 238 - 320 x 240
• YUV2: 848 x 480 / 478 - 800 x 600 / 448 / 446 - 640 x 480 / 360 / 358 - 480 x 360 - 424 x 240 / 238 - 320 x 240

Lens Kit:

PC+30% GF (Housing)/Glass + COC (Lens)

Colour:

Black and Silver

Enclosure Type:

ABS (Housing)/PC (Panel)/optical plastic

Cable Length:

200cm

Temperature:

• Operating: 0°C to 60°C
• Storage: -20°C to 60°C

Humidity:

< 90% non-condensing

Product Width:

106mm

Product Length:

63.6mm

Product Height:

64.6mm

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

7cm

Gross Weight:

0.25Kg

Special Features:

• Supports MJPEG image formats.
• Ultra HD 4K image 8MP sensor with wide angle lens.
• Supports 4K at 30 FPS and 1080P at 60 FPS.
• 94° diagonal field of view with nearly zero distortion.
• Built-in high-fidelity dual microphones.
• Ultra-low illumination F/2.0 aperture lens for enhanced light sensitivity.
• Privacy cover.
• Compliant with standard UVC 1.1/1.5 and UAC 1.0 protocol, driver-free.
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc.

Package Contents:

• 1 x JVU430 USB 4K ULTRA HD Webcam
• 1 x Quick Installation Guide
