Product Name:

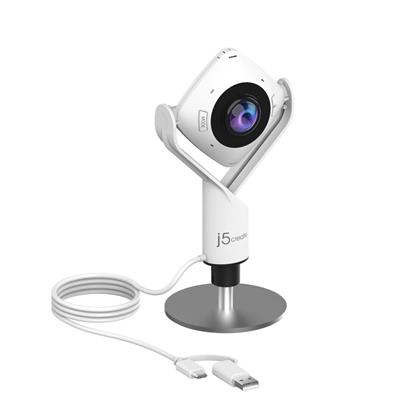

J5Create 360° All Around Webcam

Web Address:

en.j5create.com

Model Number:

JVCU360-N

EAN:

4712795085594

Package Type:

Retail

Warranty:

2 Years

Hardware:

• Host Connector: USB-C / USB 2.0 Type-A
• Image Sensor: 1/2.9-inch CMOS Sensor
• LED indicators: Red: Muted / Blue: Power on
• Operating voltage and current: DC5V/500 mA ±15 m
• Privacy cover: No
• Protocol: UVC 1.1 and UAC

Performance:

• Display Fov
• Full Screen Mode: 2 x 180°(H), 53°(V)
• 360° All Around View Mode: 360°(H), 53°(V),
• Host Mode: 360°(H), 120°(H), 53°(V)
• Dual Host Mode: 360°(H), 60°(H), 53°(V)
• Single View Mode: 90°(H), 58.5°(V)
• Wide Angle View Mode: 120°(H), 88.6°
• Effective Pixels:
• Full Screen Mode: 1920(H) x 540(V)
• 360° All Around View Mode: 1920(H) x 720(V)
• Host Mode: 1920(H) x 270(V), 1920(H) x 810(V)
• Dual Host Mode: 1920(H) x 270(V), 960(H) x 810(V)
• Single View Mode: 1920(H) x 1080(V)
• Wide Angle View Mode: 120°(H), 88.6°
• Frame Rate: 30FPS
• Max Display Refresh Rate: 30Hz
• Megapixels: 2 million pixels (2MP)
• Microphone: Built-in omnidirectional microphone
• Output Format: MJPEG
• Supported Resolution – Output: 1920 x 1080 / 1280 x 720 / 640 x 480 / 360

Enclosure Type:

ABS

Cable Length:

300cm

Temperature:

• Operating: 0°C to 40°C
• Storage:20°C to 60°C

Humidity:

< 90% non-condensing

Product Width:

93.5mm

Product Length:

37mm

Product Height:

193mm

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

5cm

Gross Weight:

0.43Kg

Special Features:

• 360° video conferencing camera.
• Built-in omnidirectional microphone.
• Six display modes deliver exceptional viewing angles with flexibility and versatility.
• Adjustable fields of view.
• Full HD 1080p video playback at 30 Hz.
• USB UVC plug-and-play.
• Touch bar to specify participants’ location.
• Built-in reverse feature to flip mirrored image.
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc..

Package Contents:

• 1 x JVCU360 360° Meeting Webcam
• 1 x Quick Installation Guide
