Product Name:

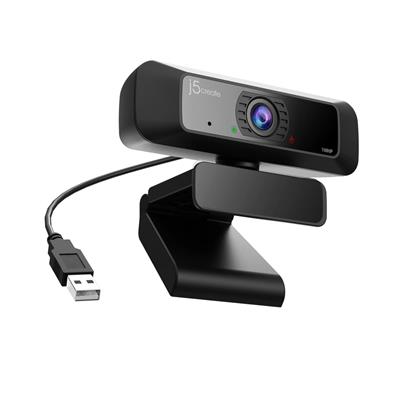

J5Create USB HD Webcam with 360° Rotation

Web Address:

en.j5create.com

Model Number:

JVCU100-N

EAN:

4712795085570

Package Type:

Retail

Warranty:

1 Year

Hardware:

• Host Connector: USB 2.0 Type-A
• Image Sensor: 1/2.9” CMOS Sensor
• Shutter Style: Auto
• Privacy Cover: No
• Protocol: UVC 1.0/1.1/1.5 and UAC
• Operating Voltage and Current: DC5V/160 mA ±15 mA
• Mounting Style: Monitor clamp mount and tripod mount
• LED Indicator: Red: Power on / Green: In use

Performance:

• Effective Pixels: 1932(H) × 1088(V)
• Megapixels: 2 million pixels (2MP)
• Output Format: H.264, MJPEG, YUV2
• Frame Rate: 1080P/ 720P/ 640P at 30FPS
• Display Output Supported Resolutions:
• H.264: 1920 x 1080 / 720 - 640 x 360
• MJPEG: 1920 x 1080 / 720 - 640 x 360
• YUV: 640 x 360
• Display FOV: 82°
• Maximum Display Refresh Rate: 30 Hz
• Microphone: Built-in high-fidelity microphone

Lens Kit:

PC+30% GF (Housing)/Glass + COC (Lens)

Enclosure Type:

ABS (Housing)/PC (Panel)

Cable Length:

150cm

Temperature:

• Operating: -20°C to 60°C
• Storage: -20°C to 60°C

Humidity:

< 90% non-condensing

Product Width:

102mm

Product Length:

53.5mm

Product Height:

53mm

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

6cm

Gross Weight:

0.21Kg

Special Features:

• Low light enhancement.
• USB plug-and-play.
• High definition 1080p image sensor with wide angle lens.
• Built-in high-fidelity microphone (the microphone is not available for Discord on Chromebook).
• Standard UVC protocol, driver-free.
• Supports Windows/macOS/Chrome OS systems.
• Supports H.264 and MJPEG image formats.
• Maximum support 1920 x 1080/30 FPS image resolution.
• Wide Compatibility: Zoom, Facebook Messenger, Skype, Microsoft Teams, etc.

Package Contents:

• 1 x USB HD Webcam with 360° rotation
• 1 x Quick Installation Guide
