Product Name:

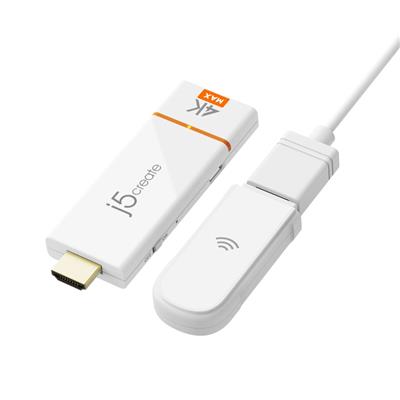

+NEW+J5Create ScreenCast 4K Max Wireless Display Adapter

Web Address:

en.j5create.com

Model Number:

JVAW76MAX-N

EAN:

4712795089455

Package Type:

Retail

Warranty:

1 Year

Enclosure Type:

Plastic

Colour:

White

Hardware:

• Host Connector: HDMI male
• Power Source: USB micro-B to USB Type-A male

Performance:

• Audio Channel: 2.1 via HDMI
• HDMI Compliance: HDMI v1.4
• Security – Encryption: WPA2
• Supported Resolution – Output:
• 3840 x 2160
• 1920 × 1080
• 1280 × 720

Wireless:

• Antenna Type: External antenna
• Channel Width: 20 MHz, 40 MHz
• Frequency: 2.4 GHz, 5 GHz
• Range: Up to 15 meters
• Standard: IEEE 802.11ac

Cable Length:

100cm

Humidity:

< 85% non-condensing

Temperature:

• Operating: -10 to +40°C
• Storage: -20 to +50°C

Product Width:

32mm

Product Length:

11mm

Product Height:

95mm

Product Weight:

79.5g

Special Features:

• Wirelessly share content from your mobile device to your HDTV.
• Native support for AirPlay, Miracast and Chromecast (Google Cast).
• Supports up to 4K UHD video.
• Native support for Point-to-Point Mode for AirPlay and Miracast without setting up a Wi-Fi connection.
• Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection.
• Wireless transmission distance up to 15m.
• Quick and easy setup - No apps or Wi-Fi needed for Airplay and Miracast devices.
• Includes an HDMI extension cable for added convenience.
• PIN Code Function for Miracast.
• Features an Admin Gateway Password for enhanced management security.
• Customizable background image.
• Cast with compatible laptops, tablets, and mobile phones.

Package Contents:

• 1 x JVAW76MAX ScreenCast 4K Max Wireless Display Adapter
• 1 x External antenna with USB Type-A power cable (39")
• 1 x HDMI extension cable (5.11")
• 1 x Quick Installation Guide (QIG)
