Product Name:

J5Create ScreenCast FHD USB-C Wireless Display Extender

Web Address:

en.j5create.com

Model Number:

JVAW61-N

EAN:

4712795089110

Package Type:

Retail

Warranty:

1 Year

Enclosure Type:

Plastic

Colour:

White

Hardware:

• Host Connector: USB-C Male Connector (Transmitter)
• Power Source: USB Type-A Male (Receiver)

Performance:

• Audio Channel: 2.1 via HDMI
• HDCP Compliance: HDCP 1.4
• HDMI Compliance: HDMI v1.3
• Security – Encryption: WPA2
• Supported Resolution – Output:
• 1920 × 1080 at 60Hz
• 1280 × 720 at 60Hz

Wireless:

• Antenna Type: Internal
• Channel Width: 20MHz
• Frequency: 5.8 GHz
• Range: Up to 10 -15 meters
• Standard: IEEE 802.11n

Cable Length:

• USB-C Transmitter (TX): 100mm
• HDMI Receiver (RX): 600 mm

Humidity:

< 85% non-condensing

Temperature:

• Operating: -10 to +40°C
• Storage: -20 to +50°C

Product Width:

• USB-C Transmitter (TX): 69.2mm
• HDMI Receiver (RX): 18.89mm

Product Length:

• USB-C Transmitter (TX): 56.11mm
• HDMI Receiver (RX): 37.1mm

Product Height:

• USB-C Transmitter (TX): 16 mm
• HDMI Receiver (RX): 9.45mm

Product Weight:

• USB-C Transmitter (TX): 46.5g
• HDMI Receiver (RX): 24.5g
• Extension Cable: 28g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.5cm

Gross Weight:

0.13Kg

Special Features:

• Wirelessly cast full HD content from your mobile device to a larger display.
• Built-in antenna supports a wireless range up to 15m.
• High-speed audio and video transmission with low latency (less than 0.13s/130ms).
• With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favourite streaming applications, such as Netflix, Amazon Prime Video, Hulu, DISNEY+, and other streaming apps.
• Supports 1080p HD video.
• A stable connection and smooth streaming experience.
• Includes a USB Type-A extension cable for added convenience.
• Compact design is ideal for home, office, school, or on-the-go.

Package Contents:

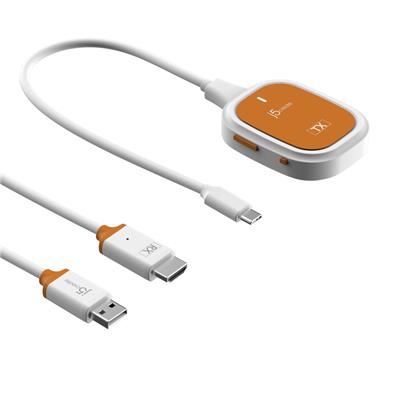

• 1 x JVAW61 ScreenCast FHD USB-C Wireless Display Extender (1 x Transmitter and 1 x Receiver)
• 1 x USB Type-A extension cable (60cm)
• 1 x Quick Installation Guide (QIG)
