Product Name:

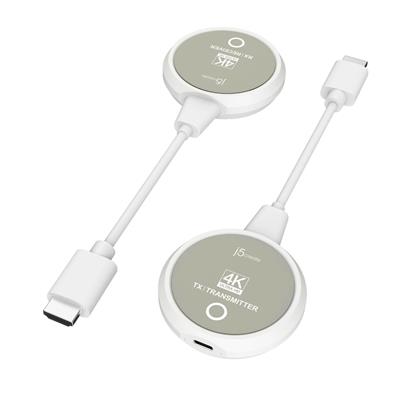

J5Create ScreenCast 4K Wireless Display HDMI Extender

Web Address:

en.j5create.com

Model Number:

JVAW75-N

EAN:

4712795087321

Package Type:

Retail

Warranty:

1 Year

Enclosure Type:

Plastic

Colour:

White/Grey

Hardware:

• Host Connector: HDMI male
• Power Source: USB-C Female
• LED Indicators:
• HDMI Transmitter (TX):
• Solid White: Device is connected to the RX successfully and is able to be operated properly.
• Blinking (Slow): The device is ready and trying to connect to RX as Receiver is being connected up.
• Blinking (Fast): The device is processing to pair with RX.
• Light off: The device has malfunctioned, OR no power input.
• HDMI Receiver (RX):
• Solid White: The device is power on and operating properly.

Performance:

• HDMI Compliance: HDMI v1.4
• HDCP Compliance: HDCP 1.4
• Audio Channel: 2.1 via HDMI
• Display Output Supported Resolutions:
• 3840 x 2160 at 30 Hz
• 1920 × 1080 at 60 Hz
• 1280 × 720 at 60 Hz
• Security (Encryption): WPA2

Wireless:

• Standard: IEEE 802.11ac
• Frequency: 2.4 GHz, 5 GHz
• Range: Up to 10 – 30 meters (Transmission range up to 30m, if signal crosses walls, signal distance might be shortened to 10m)
• Channel Width: 20 MHz, 40 MHz
• Antenna Type: Internal

Cable Length:

• HDMI Transmitter (TX): 152.3 mm
• HDMI Receiver (RX): 152.3mm

Humidity:

< 85% non-condensing

Temperature:

• Operating: -10 to +40°C
• Storage: -20 to +50°C

Product Width:

• HDMI Transmitter (TX): 66mm
• HDMI Receiver (RX): 66mm

Product Length:

• HDMI Transmitter (TX): 17mm
• HDMI Receiver (RX): 17mm

Product Height:

• HDMI Transmitter (TX):(61.47mm
• HDMI Receiver (RX): 61.47mm

Product Weight:

• HDMI Transmitter (TX): 63g
• HDMI Receiver (RX): 63g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

3.6cm

Gross Weight:

0.30Kg

Special Features:

• Cast 4K content wirelessly from your mobile device to a larger TV or display.
• Built-in antenna supports a wireless range up to 30m.
• High-speed audio and video transmission with low latency (less than 0.13s/130ms).
• With support of DRM technology and HDCP 1.4 compliance, you can watch your favourite shows/movies on your favourite streaming apps, such as Netflix, Amazon Prime Video, Hulu, DISNEY+, and other streaming services.
• Supports 4K@30 and 1080 at 60 video.
• Built-in dual band (2.4 GHz and 5 GHz) offers a steady connection and smooth streaming experience.
• Compact design is great for home, office, school, or on-the-go.
• Compatible with a variety of wireless technologies, including Miracast, AirPlay, and Google Chromecast.

Package Contents:

• 1 x JVAW75 4K Wireless Display HDMI Extender (1 x Transmitter and 1 x Receiver)
• 2 x USB-C to USB Type-A power cable (Cable Length: 100 cm, Colour: White)
• 1 x HDMI extension cable (Cable Length: 60cm, Colour: White)
• 1 x Quick Installation Guide (QIG)
