Product Name:

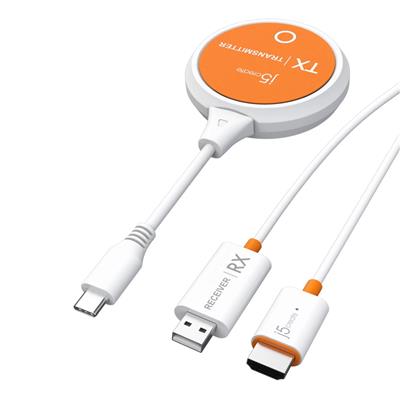

J5Create ScreenCast USB-C Wireless Display HDMI Extender

Web Address:

en.j5create.com

Model Number:

JVAW62-N

EAN:

4712795086140

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Plastic

Colour:

White and Orange

Hardware:

• Host Connector: USB-C with DisplayPort Alt-mode
• Power Source: USB Type-A male

Performance:

• Audio Channel: 2.1 via HDMI
• Hdcp compliance: HDCP 1.4
• Hdmi compliance: HDMI v1.3
• Security – encryption: WPA2
• Supported resolution – output: 1920 × 1080 / 1280 × 720

Wireless:

• Antenna Type: Internal antenna
• Channel Width: 20 MHz, 40 MHz
• Frequency: 2.4 GHz, 5 GHz
• Range: Up to 10 - 15 meters
• Standard: IEEE 802.11ac

Cable Length:

• USB-C Transmitter (TX): 85mm
• HDMI Receiver (RX): 600mm

Humidity:

< 85% non-condensing

Temperature:

• Operating: -10 to +40°C
• Storage: -20 to +50°C

Product Width:

• USB-C Transmitter (TX): 65mm
• HDMI Receiver (RX): 24 mm

Product Length:

• USB-C Transmitter (TX): 17mm
• HDMI Receiver (RX): 10.5mm

Product Height:

• USB-C Transmitter (TX): 65mm
• HDMI Receiver (RX): 57mm

Product Weight:

• USB-C Transmitter (TX): 54g
• HDMI Receiver (RX): 31.5g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.25cm

Gross Weight:

0.18Kg

Special Features:

• Wirelessly cast full HD content from your mobile device to a larger TV or display.
• With support of DRM technology and HDCP 1.4 compliance, you can enjoy your shows/movies on your favourite streaming applications, such as Netflix, Amazon Prime Video, Hulu, DISNEY+, and more.
• Supports 1080p HD video.
• Built-in dual band (2.4 GHz and 5 GHz) ensures a stable connection and smooth streaming experience.
• Includes an USB Type-A extension cable for added convenience.
• Compact design is ideal for home, office, school, or on-the-go.
• Supports multiple wireless standards including Miracast, AirPlay, and Google Chromecast.

Package Contents:

• 1 x JVAW62 ScreenCast USB-C Wireless Display HDMI Extender (1 x Transmitter and 1 x Receiver)
• 1 x USB Type-A extension cable
• 1 x Quick Installation Guide (QIG)
