Product Name:

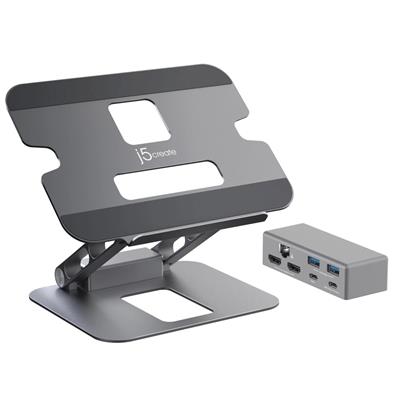

J5Create Multi-Angle 4K Docking Stand

Web Address:

en.j5create.com

Model Number:

JTS427-N

EAN:

4712795086447

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Space Gray

Hardware:

• Additional Storage: No
• Adjustable Angle: N/A
• Assembly Required: No
• Audio Supported: Yes
• Docking Station Included: Yes
• Host Connector: 1 - USB-C Female
• Maximum Weight Capacity: 4Kg
• Network Interface: Yes
• Ports
• 1 x USB-C 5Gbps (Data transfer and Power Delivery 3.0)
• 2 x USB 5Gbps Type-A
• 2 x HDMI (4K for Single display, 1080p for Dual display)
• 1 x Gigabit Ethernet
• Power Source: Bus-powered or self-powered
• Video Output:
• 2 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI
• Displays Supported: 2
• Max Display Refresh Rate: 4K at 30 Hz
• Max Display Resolution: 3840 x 2160
• Wide Screen Supported: Yes

Power:

• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.5A
• Output Voltage: Up to 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W

Cable Length:

60cm

Humidity:

< 85% non-condensing

Temperature:

• Operating: 0 to 30°C
• Storage: -10 to 65°C

Product Width:

226mm

Product Length:

53mm

Product Height:

290mm

Product Weight:

1310g

Package Width:

23.7cm

Package Length:

31.2cm

Package Height:

6cm

Gross Weight:

1.51Kg

Special Features:

• Fits most laptops up to 16 in.
• Aluminium construction with a weight capacity of up to 4Kg.
• Adjustable viewing angles and heights help reduce eye strain and improve posture.
• Nonslip protective pads help prevent slipping and scratches.
• Foldable design for easy storage and portability.
• Supports 4K HDMI or dual 1080p HDMI display on compatible USB-C laptops with DisplayPort 1.2 alt mode with MST support.
• Integrated USB-C mini dock offers support for dual HDMI, network access, and three USB ports.
• Easily create a 4K HDMI or dual 1080p HDMI setup with your Thunderbolt 3/4 or USB-C laptop with DP Alt mode.
• Two 5Gbps Type-A ports for data transfer and syncing or charging your USB devices.
• One USB-C port with 5Gbps data transfer and support for 100W power pass-through.
• Reliable network connectivity via the Gigabit Ethernet port.

Package Contents:

• 1 x JTS427 Multi-Angle Dual HDMI Docking Stand
• 1 x USB-C 3.2 male to male host cable
• 1 x Quick Installation Guide (QIG)

Keywords:

• Multi-Angle
• Dual
• HDMI
• Docking
• Stand
