Product Name:

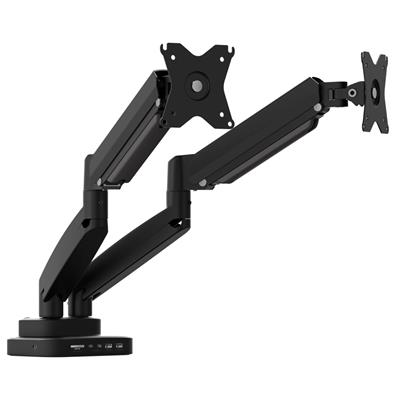

J5Create Ergonomic Dual-Monitor Mount with Docking Station

Web Address:

en.j5create.com

Model Number:

JTSA302-N

EAN:

4712795088298

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Hardware:

• Adjustable Angle:
• Screen Tilt: -45° to +90°
• Arm Swivel: -180° to +180°
• Screen Swivel: -90° to +90
• Screen Rotation: 360°
• Assembly Required: Yes
• Audio Supported: Yes
• C-Clamp Base: Yes (10~50mm)
• C - Clamp Base: Yes (10~50mm)
• Docking Station Included: Yes
• Grommet Mounting Base: Yes (10~50mm)
• Host Connector: 1 x USB-C Female
• Maximum Weight Capacity: 8Kg
• Network Interface: Yes
• Ports:
• 2 x 4K60 HDMI (MST Dual 4K60)
• 2 x USB-C 10 Gbps
• 1 x USB Type-A 5Gbps
• 1 x USB Type-A 10Gbps
• 1 x 100W PD pass through charging
• 1 x SD / microSD 4.0
• 1 x Gigabit Ethernet
• Power Source: Bus-powered or self-powered
• VESA Pattern: 75x75mm/100x100mm
• Video Output: 2 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI
• Displays Supported: 2
• Max Display Refresh Rate: 4K at 60Hz
• Max Display Resolution: 3840 x 2160
• Wide Screen Supported: Yes

Power:

• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W

Humidity:

< 85% non-condensing

Temperature:

• Operating: 0 to 30°C
• Storage: -10 to 65°C

Product Width:

180mm

Product Length:

465mm

Product Height:

320mm

Product Weight:

4000g

Package Width:

24.3cm

Package Length:

51.5cm

Package Height:

12.7cm

Gross Weight:

4.43Kg

Special Features:

• Fully adjustable gas spring dual monitor mount with 10-in-1 dock.
• Easily adjusts monitors to any height and allows the monitors to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitors at optimal angles.
• Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI, Gigabit Ethernet, 1 x USB Type-A 10Gbps, 1 x USB Type-A 5Gbps, 2 x USB-C 10Gbps, SD/microSD 4.0, and up to 100W PD pass through charging

Package Contents:

• 1 x JTSA302 Ergonomic Dual-Monitor Mount with Docking Station
• 1 x USB-C 10Gbps male to male host cable 100cm
• 1 x Installation tools and accessories
• 1 x Quick Installation Guide (QIG)

Keywords:

• Mount
• Dual-Monitor
• Docking Station
• Ergonomic
