Product Name:

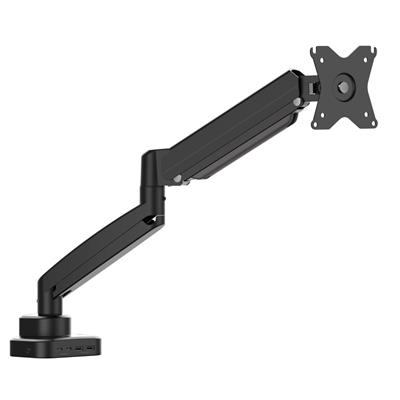

J5Create Ergonomic Monitor Mount with Dock

Web Address:

en.j5create.com

Model Number:

JTSA301-N

EAN:

4712795088281

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Hardware:

• Adjustable Angle: Screen Tilt: -45° to +90° Arm Swivel: -180° to +180° Screen Swivel: -90° to +90 Screen Rotation: 360°
• Assembly Required: Yes
• Audio Supported: Yes
• C-Clamp Base: Yes (10~50mm)
• Docking Station Included: Yes
• Grommet Mounting Base: Yes (10~50mm)
• Host Connector: 1 x USB-C Female
• Maximum Weight Capacity: 8Kg
• Ports:
• 1 x 4K60 HDMI
• 2 x USB-C 10Gbps (Data transfer)
• 2 x USB Type-A 10Gbps
• 1 x 100W PD pass through charging
• Power Source: Bus-powered or self-powered
• VESA Pattern: 75x75mm/100x100mm
• Video Output: 1 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI
• Displays Supported: 1
• Max Display Refresh Rate: 4K at 60 Hz
• Max Display Resolution: 3840 x 2160
• Wide Screen Supported: Yes

Power:

• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W

Humidity:

< 85% non-condensing

Temperature:

• Operating: 0 to 30°C
• Storage: -10 to 65°C

Product Width:

130mm

Product Length:

465mm

Product Height:

320mm

Product Weight:

1900g

Package Width:

20.8cm

Package Length:

46.5cm

Package Height:

10.6cm

Gross Weight:

2.74Kg

Package Contents:

• 1 x JTSA301 Ergonomic Monitor Mount with Dock
• 1 x USB-C 10Gbps male to male host cable 100cm
• 1 x Installation tools and accessories
• 1 x Quick Installation Guide (QIG)
