Product Name:

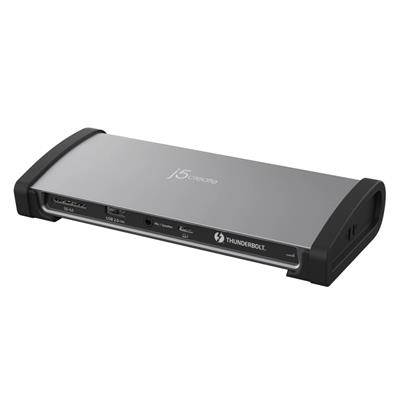

J5Create 8K Thunderbolt 4 Docking Station UK

Web Address:

en.j5create.com

Model Number:

JTD562-FN

EAN:

4712795086928

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Black / Space Grey

Hardware:

• Audio Supported: Yes
• Host Connector: 1 x Thunderbolt 4 Female
• Network Interface: RJ45 (Gigabit Ethernet)
• Ports
• 1 x USB-C Power Delivery 96W (Host)
• 3 x Thunderbolt 4 USB-C 40Gbps
• 3 x USB 3.2 Type-A Gen 2 10Gbps
• 1 x USB 2.0 Type-A with BC1.2 fast charging
• 1 x SD 4.0 UHS-II 312 MB/s memory card reader/writer
• 1 x 3.5 mm combo audio jack
• 1 x RJ45 Gigabit Ethernet
• Power Source: Self-powered
• Video Output: 3 x Thunderbolt 4 Female

Performance:

• Audio Channel: 3 -Thunderbolt 4 / 3.5 combo audio jack
• Compatible Networks: 10/100/1000 Base-T, auto-negotiating
• Displays Supported: 2
• Max Data Transfer Rate: 40Gbps
• Max Display Refresh Rate: 60Hz via Thunderbolt 4
• Max Display Resolution:
• Thunderbolt Mode
• 2 x 4K at 60 Hz
• 1x 4K at 120 Hz (Via DP)
• 1x 8K at 60 Hz
• MFDP Mode (Base on HBR3 Host)
• 1 x 4K at 60 Hz

Power:

• Input Current: 2.5A
• Input Voltage: 110V-240V
• Output Current: 6.75A
• Output Voltage: 20V
• Power Consumption: 1.2A
• Power Delivery: 96W

Cable Length:

70cm

Temperature:

• Operating: 0 to 48°C
• Storage: -10 to 65°C

Humidity:

< 85% non-condensing

Product Width:

84.39mm

Product Length:

30.85mm

Product Height:

194mm

Product Weight:

411g

Package Width:

12.2cm

Package Length:

23.7cm

Package Height:

9.4cm

Gross Weight:

1.36Kg

Special Features:

• Providing the ultimate connectivity for Thunderbolt 4 laptops.
• Intel Thunderbolt 4 certified for reliability and compatibility.
• Capable of ultra-high data transfer speeds.
• Supports dual 4K at 60Hz displays or one high-resolution 8K display with crystal clear image quality.
• Supports Thunderbolt daisy chain feature to connect more Thunderbolt devices.
• Perfectly made for MacBook Pro (2021 and later) and Thunderbolt 4 laptops.
• 3 x Thunderbolt 4 USB-C 40Gbps.
• Power adapter 135W AC adapter with up to 96W PD charge.
• Backwards compatible with Thunderbolt 3.

Package Contents:

• 1 x JTD562 Thunderbolt 4 Docking Station
• 1 x 135W AC adapter with up to 96W PD charge
• 1 x Thunderbolt 4 to Thunderbolt 4 Cable (70cm)
• 2 x USB-C to 4K DisplayPort Cable
• 1 x Quick Installation Guide (QIG)
