Product Name:

J5Create USB-C Triple Display Docking Station with 100W PD Adapter UK

Web Address:

en.j5create.com

Model Number:

JCD543P-FN

EAN:

4712795084009

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Silver and Black

Hardware:

• Audio Supported: Yes
• Host Connector: USB-C Male
• Network Interface: RJ45 (Gigabit Ethernet)
• Ports:
• 2 x USB 3.0 Type-A
• 1 x USB 3.0 Type-A fast charge
• 1 x USB-C 3.1 Gen 1
• 1 x USB-C Power Delivery 3.0
• 2 x 4K HDMI
• 1 x DisplayPort
• 1 x VGA
• 1 x SD and microSD memory card reader/writer
• 1 x RJ45 Gigabit Ethernet
• 1 x 3.5 mm combo audio jack
• Power Source: Bus-powered or Self-powered
• USB Pass-through: Yes
• Video Output:
• 2 x HDMI Female
• 1 x DisplayPort Female
• 1 x VGA Female

Performance:

• Audio Channel: 2.1 via HDMI/DisplayPort/3.5 mm Aux
• Compatible Networks: 10/100/1000 Mbps
• Displays Supported: 3 (HDMI, VGA and DisplayPort or HDMI)
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: HDMI/DisplayPort 4K: 30 Hz / HDMI/DisplayPort 1080p: 60 Hz / VGA: 60 Hz
• Max Display Resolution: HDMI/DisplayPort: 3840 x 2160 / VGA: 1920 x 1080

Power:

• Input Current: 0.8A
• Input Voltage: 110 - 220V
• Output Current: USB-C - 4.75A / USB Type-A – 2.4A
• Output Voltage: Up to 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W via USB-C

Cable Length:

45cm

Temperature:

• Operating: 0 to 48°C
• Storage: -10 to 65°C

Humidity:

< 85% non-condensing

Product Width:

82.5mm

Product Length:

350mm

Product Height:

23.37mm

Product Weight:

300g

Package Width:

8.93cm

Package Length:

35.8cm

Package Height:

6.35cm

Gross Weight:

0.92Kg

Special Features:

• Triple Display Flexibility and Adaptability: Create a triple-monitor setup with 4K HDMI, 1080p VGA, and 4K DisplayPort outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
• HDMI + VGA + DisplayPort
• HDMI + VGA + HDMI
• USB-C 100W Power Delivery: With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C power adapter.
• Multiple Connections: To support all of your USB peripherals, the dock provides a total of four USB 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD/microSD card slots and a combo audio jack.
• BC 1.2 Fast Charging: One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB port.
• Cutting-Edge Design: Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.

Package Contents:

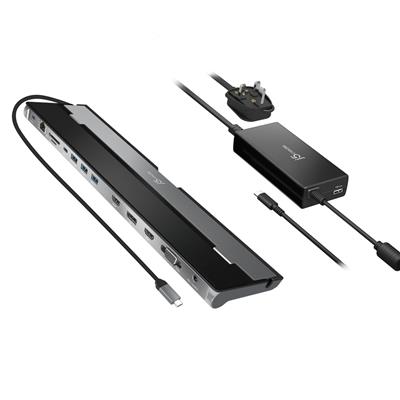

• 1 x JCD543P USB-C Triple Display Docking Station
• 1 x JUP2290 100W USB-C Super Charger
• 1 x Quick Installation Guide
