Product Name:

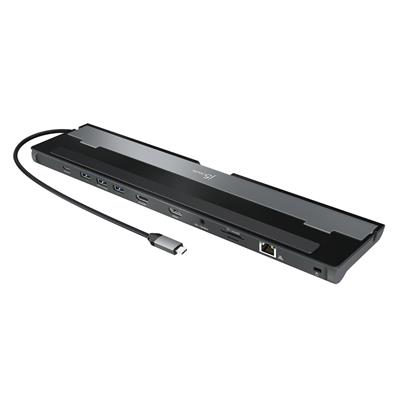

J5Create USB-C Dual HDMI Docking Station

Web Address:

en.j5create.com

Model Number:

JCD542-N

EAN:

4712795086041

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Grey and Black

Hardware:

• Audio Supported: Yes
• Host Connector: USB-C Male
• Network Interface: RJ45 (Gigabit Ethernet)
• Ports:
• 1 x USB-C Power Delivery 3.0
• 3 x USB 3.0 Type-A
• 1 x 4K HDMI
• 1 x 2K/1080p HDMI
• 1 x SD and microSD memory card reader/writer
• 1 x RJ45 Gigabit Ethernet
• 1 x 3.5 mm combo audio jack
• Power Source: Bus-powered
• Video Output: 2 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI / 3.5 mm Aux
• Compatible Networks: 10/100/1000 Mbps
• Displays Supported: 2
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: 4K @ 30 Hz / 2K @ 60 Hz
• Max Display Resolution:
• Dual Displays: 3840 x 2160 and 2048 x 1152 / 1920 x 1080
• Single Display: 3840 x 2160

Power:

• Input Current: 5A
• Input Voltage: 20V
• Output Current: 5A
• Output Voltage: 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W via USB-C

Cable Length:

45cm

Temperature:

• Operating: 0 to 48°C
• Storage -10 to 65°C

Humidity:

< 85% non-condensing

Product Width:

82.46mm

Product Length:

350.18mm

Product Height:

21.98mm

Product Weight:

306g

Package Width:

8.83cm

Package Length:

35.8cm

Package Height:

2.8cm

Gross Weight:

0.40Kg

Special Features:

• Dual displays via HDMI outputs.
• Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C power adapter.
• Connect and charge your USB devices with 3 x USB ports.
• Reliable network connectivity via the Gigabit Ethernet port.
• Direct access to SD and microSD memory cards for data storage and transfer.
• 3.5mm audio jack to connect microphone/headphone.
• Security lock slot for anti-theft protection.
• Convenience setup with double-sided cable storage compartment.
• Heat-eliminating design.

Package Contents:

• 1 x JCD542 USB-C Dual HDMI Docking Station
• 1 x Quick Installation Guide (QIG)
