Product Name:

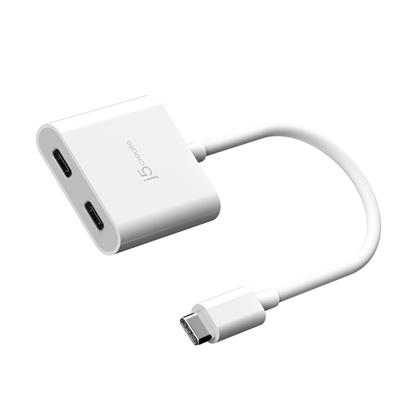

J5Create USB-C to Dual USB-C with Video or Power Delivery

Web Address:

en.j5create.com

Model Number:

JCA164-N

EAN:

4712795088779

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

ABS Plastic

Colour:

White

Hardware:

• Audio supported: Yes
• Host Connector: 1 x USB-C Male
• Ports
• 1 x USB-C 4K at 240 Hz with USB 480 Mbps
• 1 x USB-C with Power Delivery 3.0 upstream charging up to 100W
• Power Source: Bus-powered or self-powered
• Video Output: 2 x USB-C Female

Performance:

• Displays Supported: 1
• Max Data Transfer Rate: 480 Mbps
• Max Display Refresh Rate: 240Hz
• Max Display Resolution:
• 3840 x 2160 at 240Hz
• 2560 x 1440 at 240Hz
• 1920 x 1080 at 240Hz

Power:

• Pd Input Current: Up to 5A
• Pd Input Voltage: Up to 20V
• Pd Output Current: Up to 4.75A
• Pd Output Voltage: Up to 20V
• Power Consumption: = 350 mA
• Power Delivery: Up to 100W via USB-C

Cable Length:

100mm

Temperature:

• Operating: -1 to 41°C
• Storage: -17 to 68°C

Product Width:

42mm

Product Length:

42mm

Product Height:

11mm

Product Weight:

23.3g

Package Width:

9.5cm

Package Length:

14.5cm

Package Height:

2.5cm

Gross Weight:

0.07Kg

Special Features:

• Design for VR/AR Glasses and USB-C Monitor.
• Supports USB-C video resolution up to 4K at 240 Hz for VR/AR glasses and USB-C monitor.
• Designed specifically for AR glasses or high-resolution monitor, features a USB-C port supporting 4K240Hz video output and 480 Mbps data transfer to offer an optimal immersive visual experience.
• Charge while playing! Equipped with a USB-C charging input supporting up to PD 100W.
• Suitable for iPhone 15, Android phone or handheld game console like Nintendo Switch and Steam Deck.
• Plug-and-play, no driver installation is required.

Package Contents:

• 1 x USB-C to Dual USB-C with Video or Power Delivery (JCA164)
• 1 x Quick Installation Guide (QIG)

Keywords:

• USB-C
• 4K
• VR/AR
• USB-C
