Product Name:

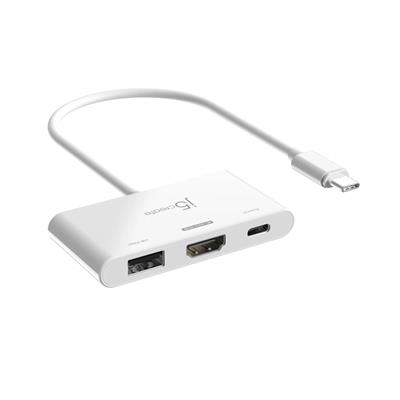

J5Create USB-C to HDMI 4K144Hz USB 3.2 with Power Delivery 100W

Web Address:

en.j5create.com

Model Number:

JCA399-N

EAN:

4712795088205

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

ABS Plastic

Colour:

White

Hardware:

• Audio Supported: Yes
• Host Connector: 1 x USB-C Male
• Ports
• 1 x HDMI 4K at 144 Hz
• 1 x USB Type-A 3.2 Gen1 5Gbps
• 1 x USB-C with Power Delivery 3.0 upstream charging up to 100W
• Power Source: Bus-powered or self-powered
• Video Output: 1 x HDMI Female

Performance:

• Displays Supported: 1
• Max Data Transfer Rate: 5Gbps
• Max Display Refresh Rate: 144Hz
• Max Display Resolution:
• 3840 x 2160 at 144Hz
• 2560 x 1440 at 144Hz
• 1920 x 1080 at 144Hz

Power:

• Pd Input Current: Up to 5A
• Pd Input Voltage: Up to 20V
• Pd Output Current: Up to 4.5A
• Pd Output Voltage: Up to 20V
• Power Consumption: = 350 mA
• Power Delivery: Up to 100W via USB-C

Cable Length:

20cm

Temperature:

• Operating: -1 to 41°C
• Storage: -17 to 68°C

Product Width:

75mm

Product Length:

45mm

Product Height:

11mm

Product Weight:

31.5g

Package Width:

10.5cm

Package Length:

17cm

Package Height:

2.5cm

Gross Weight:

0.10Kg

Special Features:

• Supports HDMI resolution up to 4K at 144 Hz.
• DisplayPort Alternate Mode for HDMI.
• Supports USB Type-A 3.2 Gen 1 port, transfer rates up to 5Gbps. Backward compatible with USB 3.1 / 3.0 /2.0.
• Supports power delivery 3.0 upstream charging up to 100W.
• Plug-and-play, no driver installation is required.

Package Contents:

• 1 x USB-C to HDMI 4K144Hz and USB 3.2 with Power Delivery 100W (JCA399)
• 1 x Quick Installation Guide (QIG)
