Product Name:

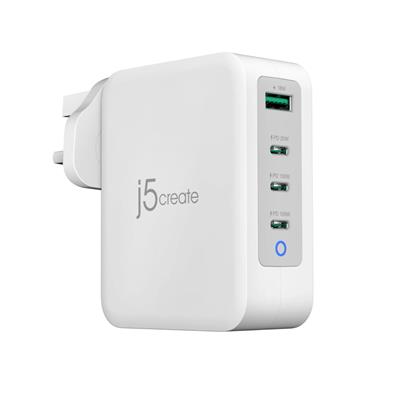

J5Create 130W GaN USB-C 4-Port Charger UK

Web Address:

en.j5create.com

Model Number:

JUP43130F-FN

EAN:

4712795086706

Package Type:

Retail

Warranty:

2 Years

Colour:

White and Gray

Enclosure Type:

Plastic

Connector:

UK Power Plug

Power Output:

• 3 x USB-C Female
• 1 x USB Type-A Female

Max Wattage Output:

• Output 3: 5V/3A, 9V/2.22A, 12V/1.67A (Max 20W)
• USB-C Output Half: 5V/3A, 9V/3A, 12V/3A, 15V/3A and 20V/5A (Max 100W)
• USB Type A Output: 3.6V-6V/3A, 6V-9V/2A, 9V-12V/1.5A (Max 18W)

Power:

100V - 240V; 50/60 Hz; 2A Max

Temperature:

Operating: 0 to 30°C

Product Width:

69mm

Product Length:

32mm

Product Height:

87mm

Product Weight:

295g

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

4cm

Gross Weight:

0.37Kg

Special Features:

• Designed to provide an enormous 130W of power in a smaller form factor.
• The combined power output of the 3-port USB-C power delivery ports and the USB Type-A port.
• Charging USB-C and USB Type-A port simultaneously automatically balances the charging output up to 130W:
• The first and the second USB-C port provide up to 100W of power when used independently.
• The first and the second USB-C port provide up to 65W of power when both ports are used. (Dynamic Power Control of full load in 30 mins: PD90W(PD45W+PD45W)
• The third USB-C port provides up to 20W of power when used independently.
• The USB Type-A port provides up to 18W of power when used independently.
• The third USB-C and USB Type-A port provide up to 20W (5V/2A+5V/2A) of power when used both ports.

Package Contents:

• 1 x 130W GaN USB-C 4-Port Charger
• 1 x Quick Installation Guide (QIG)
