Product Name:

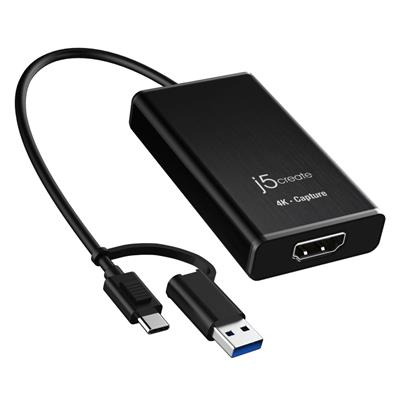

J5Create Video Capture USB Hub

Web Address:

en.j5create.com

Model Number:

JVA11-N

EAN:

4712795086645

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Enclosure:

Aluminium

Host Connector:

1 x USB-C 3.2 Gen 1 Female (Type-A to USB-C)

Ports:

• 1 x USB-C 3.2 Gen 1 (Host)
• 1 x HDMI Input

Audio Input:

1 x HDMI Female

Video Input:

1 x HDMI Female

Video Output:

2.1 via HDMI

Power Source:

• Input Current: 1.5A
• Input Voltage: 5V

Audio Channel:

2.1 via HDM

Audio Frequency:

48kHz

Compressions:

• USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
• USB 2.0: YUV4:2:0

Max Capture:

• USB 3.0: 3840 x 2160 at 30
• USB 2.0: 1280 x 720 at30

Max Capture Refresh Rate:

4K 30 fps, 2K 60 fps, 1080p 120 fps

Power:

• Input Current: 1.5A
• Input Voltage: 5V

Cable Length:

20cm

Humidity:

• Operating: <80% non-condensing
• Storage:<85% non-condensing

Temperature:

• Operating: 0 to 40°C
• Storage: -10 – 65?

Product Width:

41mm

Product Length:

14.14mm

Product Height:

72mm

Product Weight:

55g

Package Width:

9.5cm

Package Length:

14.5cm

Package Height:

2.5cm

Gross Weight:

0.09Kg

Special Features:

• HDMI input for capturing.
• 4K video and audio high-performance record through USB-C 3.2 Gen 1.
• UVC standard - No driver installation required.
• Ultra-low latency stream through USB-C 3.2 Gen 1 connection.
• Field production made easy with its compact size.

Package Contents:

• 1 x JVA11 4K HDMI Capture Adapter
• 1 x Quick Installation Guide (QIG)
