Product Name:

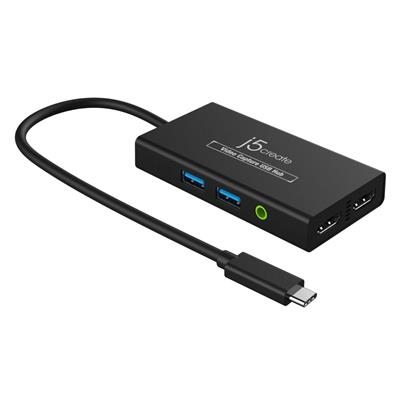

J5Create Video Capture USB Hub

Web Address:

en.j5create.com

Model Number:

JVA01-N

EAN:

4712795086454

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Enclosure:

Plastic

Host Connector:

1 x USB-C 3.2 Female

Ports:

• 1 x USB-C PD 3.0
• 1 x HDMI Input
• 1 x 4K HDMI Output
• 1 x 3.5 mm audio jack
• 2 x USB Type-A (5Gbps)

Audio Output:

1 x 3.5 mm AUX

Video Input:

1 x HDMI Female

Video Output:

1 x HDMI Female

Power Source:

Bus-powered or self-powered (USB-C PD power)

Audio Channel:

2.1 via HDMI

Compressions:

USB 2.0: MJPEG

Format:

MJPEG

Headset:

2.1 Stereo

Max Display Resolution:

• HDMI In: 3840 x 2160
• USB-C display: 3840 x 2160
• Capture/Record: 1920 x 1080

Max Display Refresh Rate:

30Hz

Power:

• Input Current: 3A
• Input Voltage: 20V
• Output Current: 3A
• Output Voltage: 20V
• Power Consumption: = 450 mA
• Power Delivery: Up to 60W via USB-C

Cable Length:

30cm

Humidity:

< 85% non-condensing

Temperature:

• Operating: 0 to 40°C
• Storage:-10 to 65?

Product Width:

50.5mm

Product Length:

96.5mm

Product Height:

15mm

Product Weight:

69g

Package Width:

9.5cm

Package Length:

14.5cm

Package Height:

2.5cm

Gross Weight:

0.11Kg

Special Features:

• UVC Capture:
• HDMI to USB-C with 60W Power Delivery.
• Power Delivery 3.0 lets you stream live without interruption.
• Ultra-low latency stream through USB-C 3.2 connection.
• 3.5 mm audio jack allows you to connect headphones or speakers.
• 2 x SuperSpeed USB 5Gbps ports to connect additional peripherals.
• UVC standard - No driver installation required.
• Field production made easy with its compact size.
• USB-C Hub with 4K HDMI:
• Easily add an HDMI video output with resolutions up to 4K at 30Hz.
• USB-C Power Delivery provides up to 60W pass-through charging to the connected devices.
• 2 x USB Type-A ports provide up to 5Gbps transfer speed.
• 3.5 mm audio jack allows you to connect headphones or speakers.
• No driver installation required for Windows or macOS.

Package Contents:

• 1 x JVA01 Video Capture USB Hub
• 1 x Quick Installation Guide (QIG)
