Product Name:

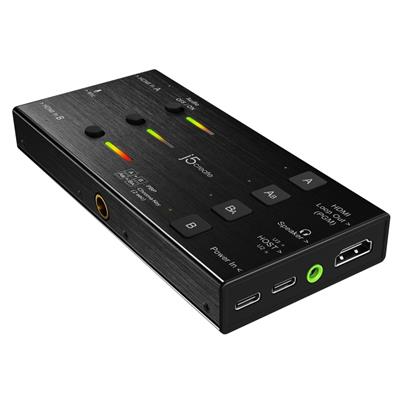

J5Create Dual HDMI Video Capture

Web Address:

en.j5create.com

Model Number:

JVA06-N

EAN:

4712795085563

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Enclosure:

Aluminium

Host Connector:

1 x USB-C Male

Ports:

• 1 x USB-C 3.0 (host)
• 1 x USB-C 3.0 (power)
• 2 x HDMI input
• 1 x HDMI output
• 1 x Mic in
• 1 x Speaker out
• 2 x Cold shoes

Audio Input:

HDMI or 3.5 mm Mic in

Audio Output:

HDMI or 3.5 mm Speaker out

Video Input:

2 x HDMI Female

Video Output:

1 x HDMI Female

Power Source:

Bus-powered or self-powered (USB-C PD power)

Audio Channel:

2.1 via HDMI

Audio Frequency:

48kHz

Compressions:

• USB 2.0: MJPEG
• USB 3.0: YUV 4:2:2

Format:

• USB 3.0: YUV 4:2:2
• USB 2.0: MJPEG

Headset:

• 40 mW output power into 16O at 3.3V
• THD -75 dB at 20 mW

Microphone:

• Stereo microphone supported
• 24-bit sigma-delta AD

Max Display Refresh Rate:

60Hz

Supported Resolution - Input:

• Progressive:
• 1920 x 1080p at 24/25/30/50/60
• 1680 x 1050p at 60
• 1600 x 1200p/900p at 60
• 1440 x 900p at 60
• 1400 x 1050p at 60
• 1366 x 768p at 60
• 1360 x 768p at 60
• 1280 x 1024p/800p/720p at 60
• 1024 x 768p at 60
• 800 x 600p at 60
• 720 x 576p/480p at 60
• 640 x 480p at 60
• Interlace:
• 1920 x 1080i at 50/60
• 720 x 576i at 50
• 720 x 480i at 60

Supported Resolution - Output:

• 1920 x 1080p at 60
• 1280 x 720p at 60
• 720 x 576p at 50
• 720 x 480p at 60
• 640 x 480p at 60

Power:

• Input Current: Up to 3A
• Input Voltage: Up to 20V
• Output Current: Up to 3A
• Output Voltage: Up to 20V
• Power Consumption: ? 1000mA
• Power Delivery: Up to 60W via USB-C

Cable Length:

• USB-C to USB-C: 60cm
• USB-C to USB Type-A: 60cm

Humidity:

< 85% non-condensing

Temperature:

• Operating: 0 to 45°C
• Storage: -10 to 65°C

Product Width:

134.6mm

Product Length:

63.7mm

Product Height:

18.4mm

Product Weight:

172g

Package Width:

9.5cm

Package Length:

15.5cm

Package Height:

7cm

Gross Weight:

0.42Kg

Special Features:

• Dual HDMI input for capturing 2 channels.
• Full HD video and audio high performance record/playback through USB-C 3.1 Gen1.
• Uncompressed 1080p at 60 FPS capture via HDMI 1.3a.
• Supports 1080p 60 HDMI loop out (PGM out).
• 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture).
• Easily switch between different screen modes and adjust transition effects with the built-in buttons.
• Directly activate Chroma Key features through the built-in controls.
• Adjustable segmented window arrangements in PBP (Picture by Picture) mode.
• Flexible audio connection via HDMI or add external audio with 3.5 mm mic-in and speaker out audio jack.
• 3 individual audio mixer on/off switches supported.
• 3 channel volume indicators.
• Easy DSLR attachment with 2 cold shoe adapters (included).
• Supports USB-C Power Delivery 3.0.
• UVC standard, plug and play.
• LED activity indicator: HDMI IN. / USB Link. / Volume Unit.

Package Contents:

• 1 x JVA06 Dual HDMI Video Capture
• 1 x Quick Installation Guide (QIG)
• 1 x USB-C 2.0 to USB-C cable
• 1 x USB-C 3.0 to USB Type-A cable
• 1 x 100cm HDMI cable
