Product Name:

ASUS X870 MAX GAMING WIFI7 (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/Extended ATX)

Web Address:

www.asus.com

Model Number:

X870 MAX GAMING WIFI7

EAN:

4711636007849

UPC:

199291007840

Package Type:

Retail

Warranty:

3 Years

BIOS:

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200+ MT/s (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

SAS Port(s):

1

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• 1 x Marvell AQtion 10Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

10

Back USB 10Gbps Port(s) Type-C:

2

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Other Port(s):

1 x Wi-Fi Module

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-PIN

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x 6-pin ARGB Gen 2 header to support
• 2 x ARGB Gen 2 headers
• 2 x Addressable Gen 2 header
• 1 x LN2 Mode jumper
• 12 x ProbeIt Measurement Points
• 1 x RSVD header
• 1 x Thermal Sensor header

Internal Button(s):

• 2 x BCLK button
• 1 x BIOS Switch
• 1 x FlexKey button
• 1 x Alteration PCIe mode switch
• 1 x ReTry button
• 2 x RSVD switchs
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Pause switch
• 1 x Start button

Form Factor:

Extended ATX

Product Width:

277mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

35.5cm

Package Height:

7cm

Gross Weight:

1.95Kg

Special Features:

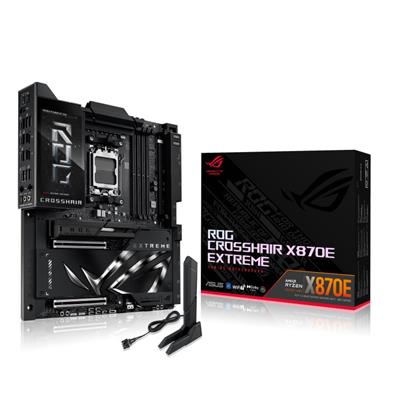

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory and PCIe 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

Package Contents:

• Motherboard
• 1 x 1-to-3 ARGB splitter cable
• 1 x 1-to-2 ARGB splitter cable
• 2 x 1-to-4 fan splitter cable
• 2 x ROG weave SATA 6G cable packages
• 1 x 3-in-1 Thermistor cables pack
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 pad package for ROG Q-DIMM.2
• 2 x Thermal pad for ROG Q-DIMM.2
• 2 x Thermal pad for M.2 22110
• 1 x DDR5 Fan holder
• 1 x ROG Fan Kit
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x ROG logo plate sticker
• 1 x ROG screwdriver
• 1 x ROG stickers
• 1 x ROG VIP card
• 1 x M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide
