Product Name:

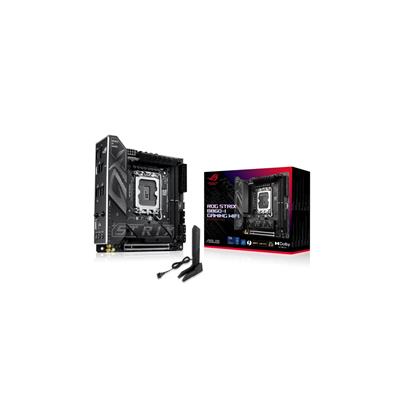

ASUS ROG STRIX B860-I GAMING WIFI (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Mini-ITX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B860-I GAMING WIFI

EAN:

4711387815991

UPC:

197105815995

Package Type:

Retail

Warranty:

3 Years

BIOS:

256Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel B860

CPU Interface:

Socket 1851

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-i-gaming-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 9066+ MT/s (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC1220P 7.1 Surround Sound High
• Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-A:

1

Back USB 20Gbps Port(s) Type-C:

1

Back Thunderbolt 4 Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Internal I/O Connectors:

1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 5Gbps Header(s):

1

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 2 x Addressable Gen2 headers
• 1 x Thermal Sensor header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.5cm

Package Length:

23cm

Package Height:

9.3cm

Gross Weight:

1.33Kg

Special Features:

The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors (Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ROG USB2.0 splitter cable
• 1 x Panel cable
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x Screw package for M.2 SSD
• 1 x M.2 Bracket
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x Quick start guide

Keywords:

• Motherboard
• 1851
• B860
• Mini-ITX
