Product Name:

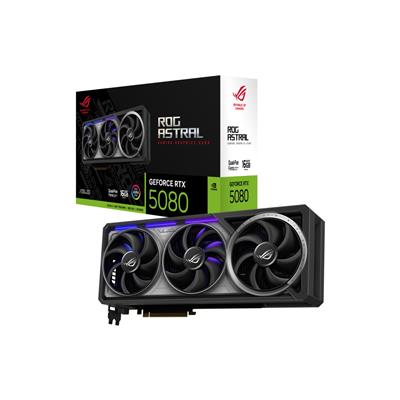

Asus GeForce RTX 5080 ROG Astral (16GB GDDR7/PCI Express 5.0/2670MHz/30000MHz)

Web Address:

www.asus.com

Model Number:

ROG-ASTRAL-RTX5080-16G-GAMING

EAN:

4711387868379

UPC:

197105868373

Package Type:

Retail

Warranty:

3 Years

Chipset:

NVIDIA GeForce RTX 5080

Bus Standard:

PCI Express 5.0

Video Memory:

16GB

Memory Type:

GDDR7

Boost Clock:

2670MHz

Memory Clock:

30000MHz

Memory Interface:

256-bit

CUDA Cores:

10752

AI Performance:

1817 TOPs

Max. Resolution:

7680x4320

HDMI 2.1 Port(s):

2

DisplayPort(s) 2.1:

3

Power Connector(s):

1 x 16-pin

Maximum Display Support:

4

HDCP Support:

2.3

DirectX Support:

12.0

OpenGL Support:

4.6

Product Width:

76mm

Product Length:

357.6mm

Product Height:

149.3mm

Package Width:

22.5cm

Package Length:

42cm

Package Height:

12.5cm

Gross Weight:

4.43Kg

Special Features:

• Quad-fan design boosts air flow and pressure by up to 20%.
• Patented vapor chamber with milled heatspreader for lower GPU temperatures.
• Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
• 3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans.
• Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting.
• Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
• Powerful 80-amp MOSFETs help ensure enhanced performance, stability and higher overclocking potential.
• Protective PCB coating guards against moisture, dust, and extreme temperatures.
• Auto-Extreme manufacturing process for precision and reliability.
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring.

Package Contents:

• Graphics Card
• 1 x Speedsetup Manual
• 1 x ROG Graphics Card Holder
• 1 x ROG Velcro Hook Loop
• 1 x ROG Magnet
• 1 x ROG Graphics Card Keycap
• 1 x ROG PCB Ruler
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 3)

Keywords:

• Graphics Card
• Video Card
• RTX 5080
• GDDR7
• HDMI
• DisplayPort
