Product Name:

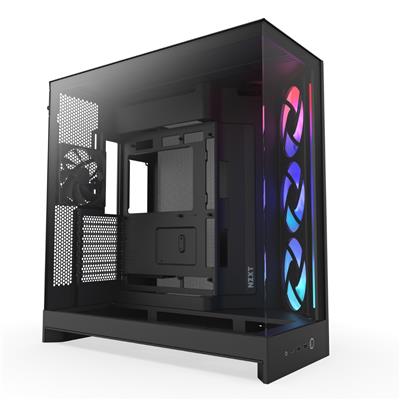

NZXT H9 Flow RGB Mid Tower Case Black (E-ATX/ATX/M-ATX/M-ITX)

Web Address:

nzxt.com

Model Number:

CM-H92FB-R1

EAN:

5056547207667

UPC:

810074847872

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

SGCC Steel

Material Front Panel:

Tempered Glass

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

2

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Headphone Jack(s):

1

Expansion Slots:

7

Motherboard Support:

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Drive Bays Internal 3.5":

2

Drive Bays Internal 2.5":

4+2

Pre-installed Fan(s) Front:

1 x F420 RGB

Pre-installed Fan(s) Rear:

1 x F120Q

Radiator Support:

• Front-Right: Up to 420mm
• Top: Up to 420 mm
• Bottom: Up to 360 mm
• Rear: Up to 120 mm

Fan Support:

• Front-Right: 3 x 120mm / 3 x 140mm
• Top: 3 x 120mm / 3 x 140mm
• Bottom: 3 x 120mm / 3 x 140mm
• Rear: 1 x 120mm

Clearances:

• CPU Cooler Height: 165mm
• GPU Length: Up to 459mm
• PSU Length: 200mm

Product Width:

315mm

Product Length:

481mm

Product Height:

506mm

Package Width:

57.7cm

Package Length:

58.7cm

Package Height:

40.3cm

Net Weight:

12.49Kg

Gross Weight:

15.22Kg

Special Features:

• The H9 Flow is a high-performance mid-tower case that delivers high-performance cooling wrapped in a striking aesthetic. Its spacious dual-chamber layout optimizes airflow and simplifies cable management, while raparound
• tempered glass panels showcase your build from any angle.

Package Contents:

• H9 Flow RGB Case
• 1 x F420 RGB Core
• 1 x F120Q Fan
• Installation Accessories
• Manual

Keywords:

• Case
• Mid-Tower
• E-ATX
• ATX
• Micro-ATX
• Mini-ITX
