Product Name:

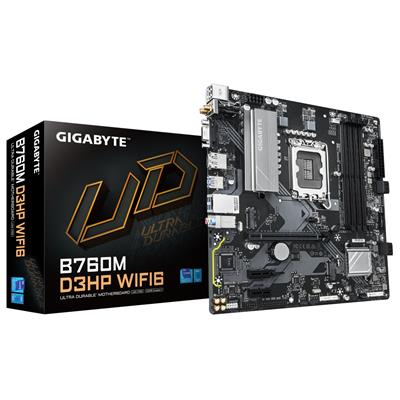

Gigabyte B760M D3HP WIFI6 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B760M D3HP WIFI6

EAN:

4719331867638

UPC:

889523047286

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

http://gigabyte.com/Motherboard/B760M-D3HP-WIFI6/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 5600 (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• Support for 11ax 80MHz wireless standard

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Addressable LED strip header
• 1 x RGB LED strip header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27cm

Package Length:

27cm

Package Height:

7cm

Gross Weight:

1.05Kg

Special Features:

• Supports Intel Core 14th/ 13th /12th processors.
• Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution.
• Dual Channel DDR5: 4 x DIMMs XMP Memory Module Support.
• Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.
• Fast Networks: GbE LAN and Wi-Fi 6 802.11ax.
• Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub.
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA cables
