Product Name:

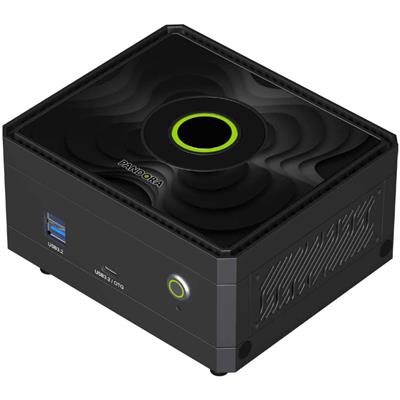

Palit Pandora Nvidia Jetson Orin NX Super 8GB

Web Address:

www.palit.com

Model Number:

A001FV1P1

EAN:

4710562245158

UPC:

845815001596

Package Type:

Retail

Warranty:

2 Years

Case Type:

Compact

Processor Type:

Arm Cortex

Processor Number:

A78AE

Processor Cores:

6

Memory Size:

8GB

Memory Type:

LPDDR5

Solid State Drive Interface:

Supports External NVMe

Optical Drive:

• OS Ubuntu: 22.04
• Kernel 5.15.148-tegra or Higher
• BSP Linux for Tegra (L4T) R36.4 or Higher
• SDK JetPack 6.1.1 or Higher

Graphics:

1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores

LAN Speed:

10/100/1000

USB 2.0 Port(s):

2

USB 3.2 Port(s) Type A Gen 2:

2

USB 3.2 Port(s) Type C Gen 2:

1

HDMI Port(s):

1

Line In Jack(s):

1

Line Out Jack(s):

1

LAN Port(s):

2

Product Width:

123mm

Product Length:

145mm

Product Height:

66mm

Package Width:

19.3cm

Package Length:

27cm

Package Height:

12cm

Gross Weight:

1.34Kg

PSU Size:

DC input: 12-36V

Special Features:

• Discover Generative AI at the Edge.
• Powered by NVIDIA Jetson Orin NX SUPER.
• Compact Size: 145mm x 123mm x 66mm.
• 4 x M.2, 8 Lanes MIPI CSI-2, and I2C / UART / GPIO / CAN Bus.
• 2 x USB3.2 Gen2, 2 x USB2.0.
• 1 x HDMI2.0.

Package Contents:

MSI Pandora Nvidia Jetson Orin NX Super 8GB

Keywords:

• AI
• Compact
• HDMI
• LPDDR5
