Product Name:

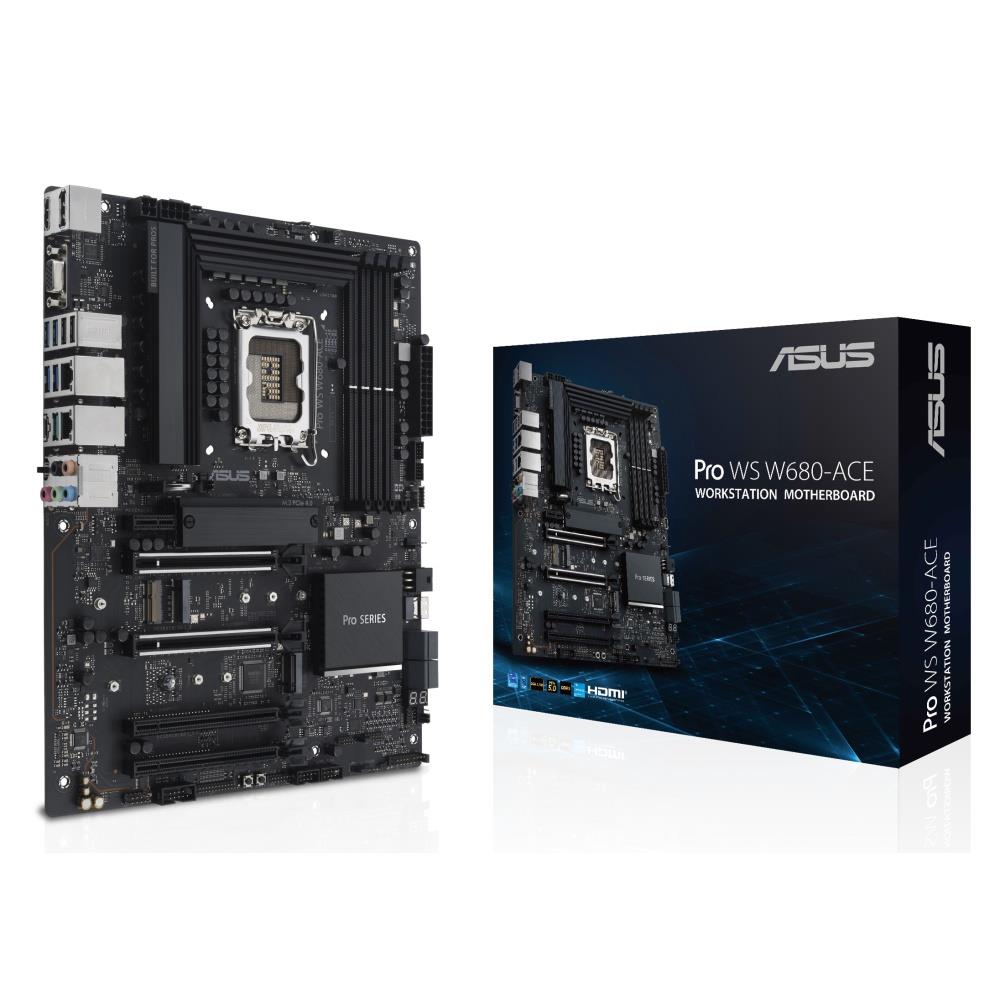

ASUS PRO WS W680-ACE (Socket 1700/W680/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PRO WS W680-ACE

EAN:

4711387006177

UPC:

197105006171

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel W680

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/workstation/pro-ws-w680-ace/helpdesk_knowledge?model2Name=Pro-WS-W680-ACE

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

Max. Memory Support:

192GB

PCI Express 3.0 x16:

2

PCI Express 5.0 x16:

2

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

SAS Port(s):

1 x Slim

M.2 Socket(s):

3 x PCIe Gen 4.0 x4

LAN Speed:

2 x Intel 2.5Gb Ethernet

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

5

Back Button(s):

1 x BIOS Flashback

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

PCIe Power Connector(s):

1 x 6-pin

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Thunderbolt Header(s):

1

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x T-sensor
• 1 x BMC Header

Internal Button(s):

• 1 x Start
• 1 x Flexkey

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

1.62Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors and 12th Gen Intel Core, Pentium Gold and Celeron Processors.
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery.
• Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header.
• Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4.
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Centre Express.
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Q-connector
• 1 x M.2 Rubber Packages
• 2 x Screw package for M.2 SSD
• 1 x Screw package for M.2 Key E
• 1 x IO Shield
• 1 x User guide
• 1 x ACC Express Activation Key Card
